4G/5G 4X4 MIMO 2X2 MIMO WIFI GPS/GNSS -BLK

Panorama Antennas MAKO LGM Antenna

• Low Profile 4x4 4G/5G MiMo
• Up to 6x6 MiMo Dual Band WiFi
• Optional GPS/GNSS Active Antenna 26dB LNA

The L[G]M[X]M4[X]-6-60[-24-58] range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6x6 MiMo WiFi 2.4/5.0GHz or 4x4 WiFi 6E 2.4/4.9-7.2GHz.

The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.

The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.

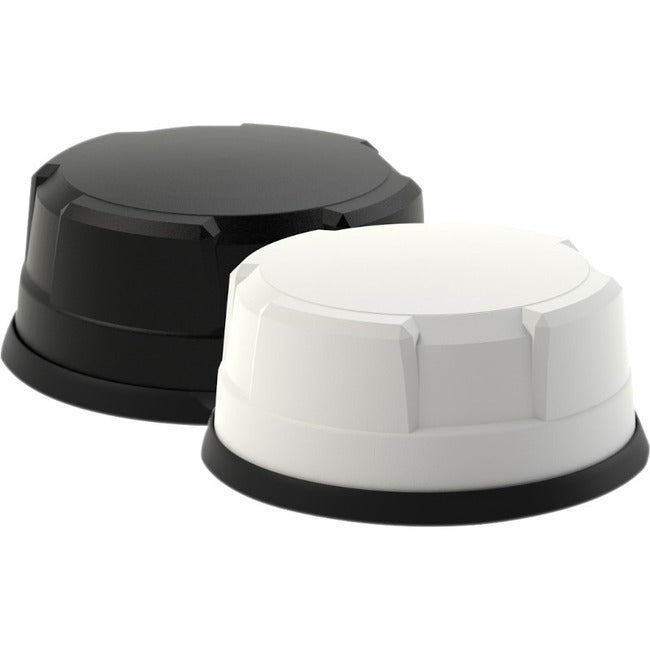

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.

• Designed to operate at 617 MHz to 960 MHz frequency
• Get improved signals for your wireless data network with this antenna
• Offers up to 26 dB gain
• Antenna can be mounted as panel mount
