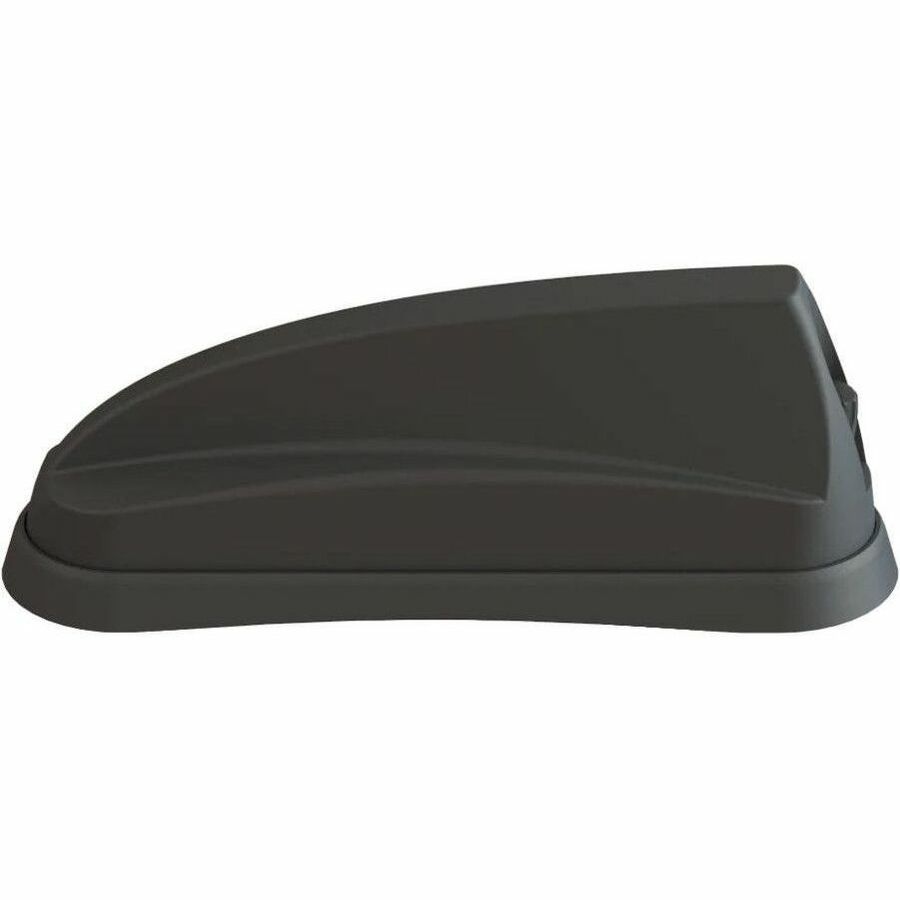

7 IN 1 SHKG-6-60-QW SFIN ANT 4XWIFI GNSS-BLK.5M FTD EX CBLS

4G/5G MiMo Antenna Discrete OEM Style Sharkfin. The SHKG 'Sharkee' range has become a byword for industry leading technology in discrete OEM sharkfin housing. The SHKG-6- 60 brings 5G capability to the product family. The antenna can be fitted on a metallic or non-metallic panel and still offer similar performance. The OEM style shark fin housing contains a 22 MiMo antenna function for 4G/5G (617-960/1710-6000MHz) and the option of 22, 33, or 44 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation. The SHKG shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential. Requiring only a single hole mounting, the SHKG reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle's resale value.

• Discreet automotive OEM SharkFin design
• Multiple antenna functions in a single housing
• Single hole mounting - reduces vehicle damage, installation time & cost
• Can be mounted on a metallic or non-metallic panel surface
• Will fit between roof ribs on all major vehicle manufacturers
• Can be retrofitted to a vehicle replacing the factory fitted antenna
• 22 MiMo Cellular - 617-960 / 1710-6000MHz
• GPS/GNSS with advanced filtering for LTE Band 13/14
• Optional 22, 33, or 44 MiMo WiFi 2.4/4.9-7.2GHz
• UN ECE R118 Compliant Cable Feeds
