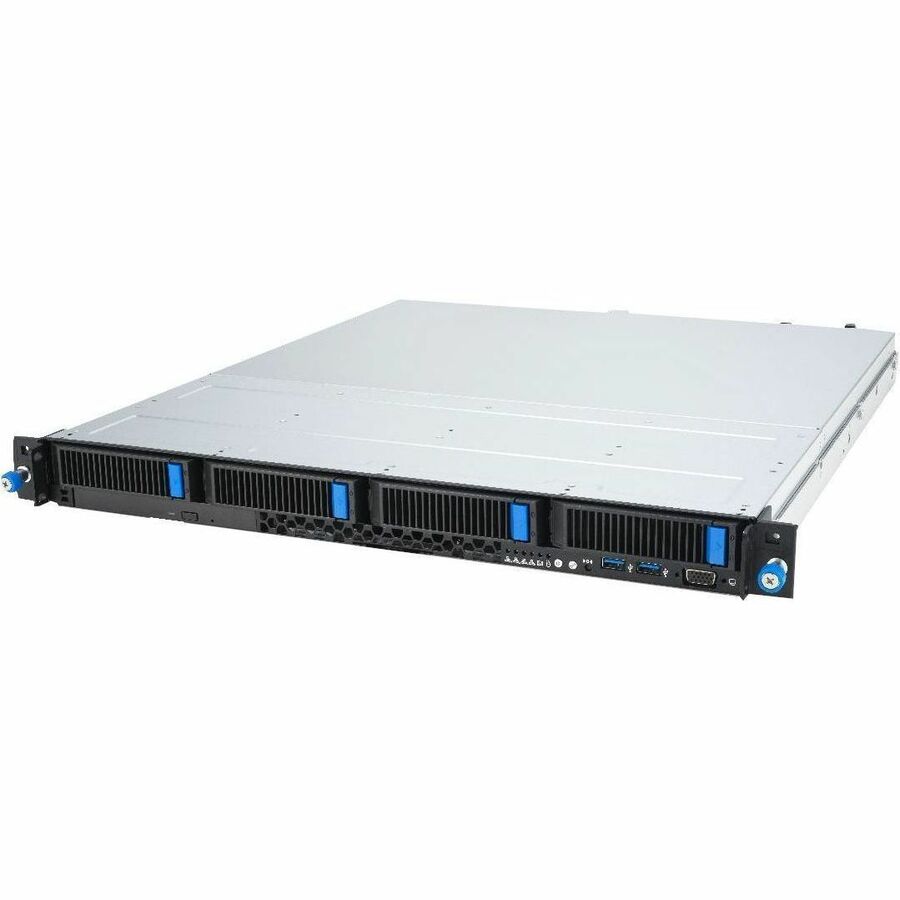

Asus RS300-E12-RS4-1G4 Server Barebone System - 1U Rack-mountable - Socket LGA-1700 - 1 x Processor Support - Intel Xeon

Asus RS300-E12-RS4-1G4 Server Barebone System - 1U Rack-mountable - Socket LGA-1700 - 1 x Processor Support - Intel Xeon

RS300-E12-RS4

ASUS RS300-E12-RS4 in an Intel^®Xeon^®E-2400 and Intel^®Xeon^®6300 1U server with support for four DDR5 ECC UDIMM, four NVMe, one M.2, one PCIe^®5.0 slot and one PCIe 4.0 slot, plus dual LAN, 80 PLUS^®Platinum redundant power supplies, Intel Platform Firmware Resilience (PFR), onboard ASUS ASMB11-iKVM and chassis-intrusion alert.

Key Features

• Powered by eight-core Intel Xeon E-2400-series and Intel Xeon 6300 series processor with support for up to 95 W TDP
• Four 3.5-inch or 2.5-inch hot-swap drives on front panel and one M.2 to enable extensive storage
• Up to one PCIe 5.0 slots and one PCIe 4.0 proprietary slot to drive higher bandwidth
• High power efficiency with redundant 450 W 80 PLUS Platinum power supplies
• Dual Intel I210-AT gigabit Ethernet with teaming support
• Onboard ASUS ASMB11-iKVM for out-of-band management with ASPEED AST2600 controller
• Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
• Chassis-intrusion for enhanced physical security

Intel Xeon E-2400 processors/Intel Xeon 6300 processors

Designed for small- to medium-sized businesses (SMBs) and cloud-service providers, offering robust and secure solutions. These processors support up to eight cores and 16 threads, with a maximum frequency of 5.6 GHz and a 95 W TDP, ensuring rapid data processing and application responsiveness. They support up to 128 GB of DDR5 4400 MT/s memory (Intel Xeon E-2400) or up to 4800 MT/s memory (Intel Xeon 6300) and PCIe 5.0 interfaces, providing server-grade 24/7 reliability for business-critical services and customer data, and cost-effective performance for entry-level bare-metal cloud services.

PCIe 5.0 ready

Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

Redundant Platinum PSU support

RS300-E12-RS4 supports redundant 450W 80 PLUS Platinum power supplies, which are 96%+ efficient, directly reducing operating costs and capital expenses. The 1+1 power-supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation.

• Xeon processor ensures timely and efficient performance for everyday computing needs
• Windows Server 2025 OS support provides a powerful platform to efficiently run routine applications without interruptions
• Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
• Serial ATA/600 interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
• ASPEED AST2600 shared graphic card handles HD video playback, photo editing, and complex office applications efficiently
• Rack-mountable server barebone system offers easy installation and convenient access for streamlined maintenance
• Featuring 5 USB ports to connect USB-compatible devices for enhanced flexibility and convenience
• Gigabit Ethernet port supports ultra-fast network speeds for smooth data transfer and improved system performance
• The DDR5 SDRAM memory technology moves data efficiently across components, ensuring smooth and responsive PC performance
