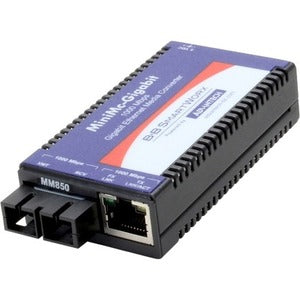

B+B SmartWorx 10/100/1000Mbps Miniature Media Converter

B+B SmartWorx 10/100/1000Mbps Miniature Media Converter The IMC-370 series offers the most compact media converters. They can extend the 10, 100 and 1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000Mbps auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, the IMC-370 series serves as a media and data rate converter.

The IMC-370I-SFP supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces.

The IMC-370I supports plug-n-play functionality, auto negotiation, and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or via installation in a centrally-powered media converter chassis.

• Supports Link Fault Pass Through (LFPT) (IMC-370I-SFP)
• Centralized powered IMC-318I chassis
• Provides status LED
• Supports multiple power options: AC or DC adapter and dual USB cable
• Industrial grade design that supports an extended operating temperature range (IMC-370I series)
• Metal enclosure with compact size
