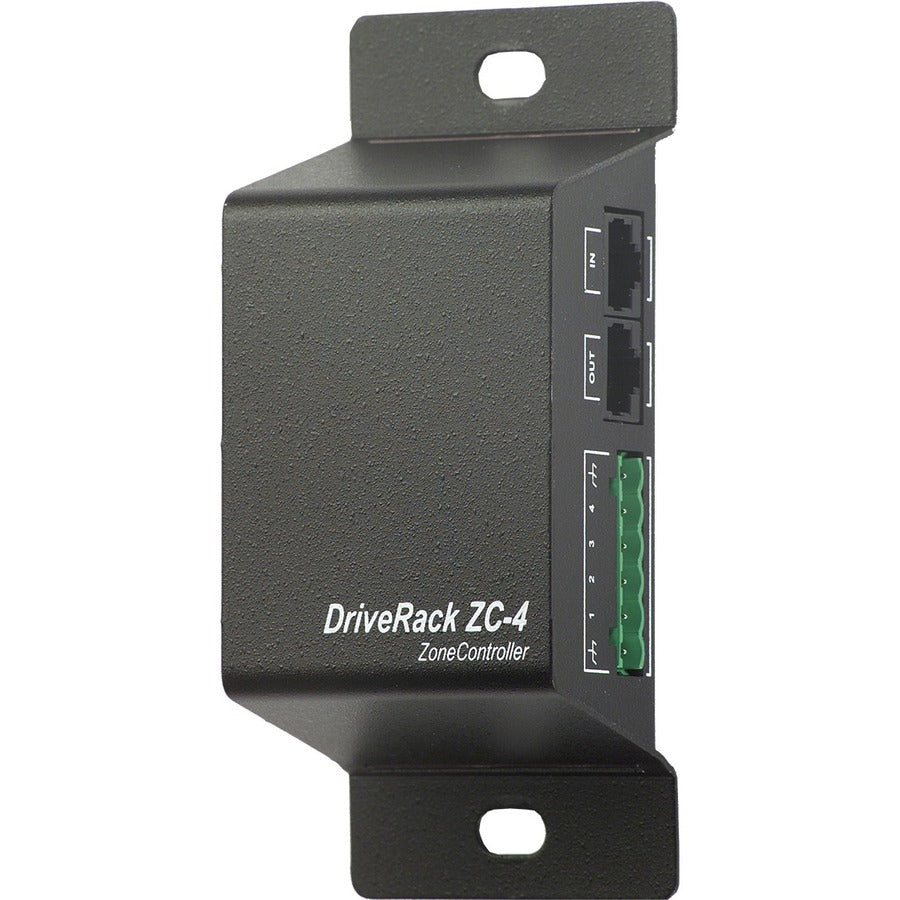

dbx ZC4 Wall-Mounted Zone Controller

The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

The ZC-4 provides program change capability from contact closures for the DriveRack 220i and 260; it can also provide source selection, page steering, or scene selection for ZonePRO devices.

• Programmable Source Selection
• Up to 1000 ft. on CAT 5 Cable
• Programmable Push-To-Talk Paging
• Program or Scene Selection
• Programmable Contact Closure Interface
• Programmable Volume Control
