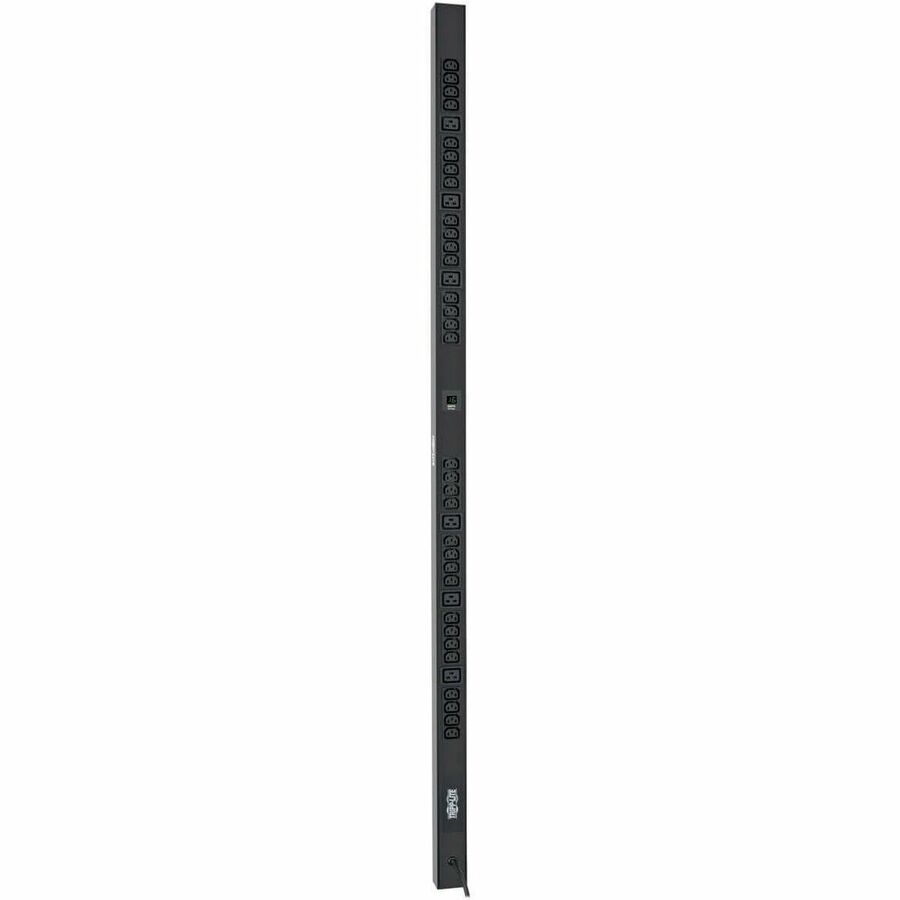

Eaton Tripp Lite Series 3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (32-C13, 6-C19), IEC309 16A Blue 16A, 0U Vertical

Eaton Tripp Lite Series 3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (32-C13, 6-C19), IEC309 16A Blue 16A, 0U Vertical

This single-phase Local Metered PDU offers real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rack-mount multi-outlet power distribution from any protected UPS, generator or mains input power source. High-quality design includes rugged all-metal housing and secure rack-mount installation with included mounting accessories.

Features

• 3.84kW 16A single phase 208/230V Local Metered Power Distribution Unit / PDU
• Two-digit lighted meter reports combined total output current in amps
• 10ft / 3m input cable with Blue IEC309 16A input plug
• 0U 63.75in / 162cm vertical rackmount format installs vertically, using no rack spaces
• 38 total outlets (6 C19, 32 C13)
• Plug-lock cord retention sleeves keep C20 and C14 equipment plugs from accidental disconnection
• Toolless installation supported in button-mount compatible equipment racks
• Bolt-down installation brackets support installation in other racks and additional surfaces

• Provide circuit protection and easy configuration for trouble-free access
• Monitor load level efficiently with PDU meter
• IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
• Single Phase phase PDU provides dependable power output with maximum efficiency
• IEC 60309 16A Blue (2P+E) plug/connector type for better, dependable connectivity and desired power output
• 230 V AC input voltage for optimal performance with maximum usability
• 208 V AC output voltage for better reliance and maximum usability
