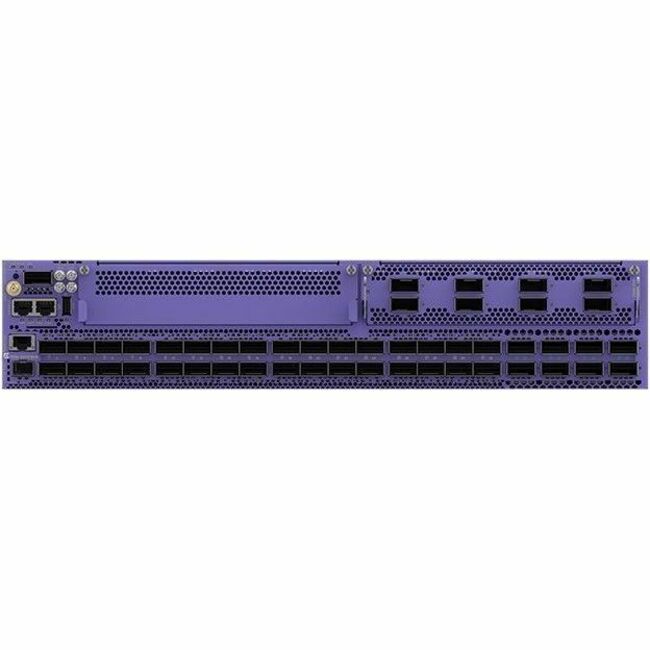

Extreme Networks 7830 Ethernet Switch

Universal 400G Core Switch

Enterprise core and data center networks increasingly demand scalable, high- performance switching paired with network automation and security. Designed for high-performance 100G and 400G enterprise core and data center networks, the Extreme 7830 switch offers a fixed-modular design.

Powered by Extreme Fabric Engine Operating System (Fabric), the 7830 simplifies new service deployment and supports secure end-to-end network macro and microsegmentation from network edge to the core.

The Extreme 7830 enables organizations to design networks that accommodate a variety of applications and east-west traffic patterns. With its high-density scale-out architecture, leading power efficiency, and airflow options, the 7830 platform delivers a solution that optimizes power, cooling, and equipment room space, wherever the network operating center might be.

Flexible port expansion with versatile interface modules providing 100G, 400G and 10G/25G port options help protect customer investment.

One model of the 7830 (7830-32CE-8DE) is available with the following port capacity:

• 32 x 100Gb QSFP28 ports, 8 x 400Gb QSFP-DD fixed MACsec ready ports and 2 unpopulated modular VIM slots
• 7830-VIM-24YE : 24 x 10Gb/25Gb SFP28 VIM, MACsec ready
• 7830-VIM-16CE : 16 x 100Gb QSFP28 VIM, MACsec ready
• 7830-VIM-8DE : 8 x 400Gb QSFP-DD VIM, MACsec ready
• 7830-VIM-24CE : 24 x 100Gb SFP-DD VIM, MACsec ready

Network Management Flexibility

The 7830 Universal Switch series are managed by Extreme Platform ONETM or ExtremeCloudTM IQ from the cloud or on-premises. Alternatively, 7830 on-box management can be done manually via a web-based GUI or generic command-line interface (CLI).

Extreme Platform ONE

Extreme Platform ONE is the industry's first all-in-one AI for networking platform with integrated security and conversational, multimodal, and agentic AI.

• A composable workspace with personalized experiences provides the right information and capabilities to the right users.
• Multi-domain, multi-layer physical, access, fabric, RF, and service views for Extreme and third-party devices in cloud make it simpler tomonitor, configure, and troubleshoot the network.
• Automation through built-in AI reduces time spent on manual tasks.
• Inventory, subscription, and contract management simplifies budgeting, planning, and compliance.
• Inclusive subscriptions make Extreme Platform ONE as simple to buy and renew as it is to use.

• Flexible support for up to 8 ports of 400 Gigabit Ethernet, 120 ports of 100 Gigabit Ethernet or up to 184 ports of 25/10 Gigabit Ethernet.
• 2x Hot-swappable Ethernet Switch Modules.
• Non-blocking, wire-speed switching architecture.
• Integrated design that is optimized for low latency.
• Flexible table architecture delivers MAC, ARP, and IP Routing scalability.
• Feature-rich support for conventional VLAN, Link Aggregation, Spanning Tree technologies.
• Support for IP Routing techniques including Static, RIP, OSPF, BGP, ECMP, VRRP, IP Anycast Gateway and VRF.
• Additionally, supports Static, RIPng, OSPFv3, BGPv6 Peering, ECMP, VRRP, and VRF for IPv6 deployments.
• Extreme Networks Fabric Connect technology supports L2 Virtual Service Networks (VSNs), Layer 3 Virtual Service Networks, Inter-VSN Routing, IP Shortcut Routing, IP Multicast-over-Fabric Connect and Fabric Connect-PIM Gateway, Fabric Attach Server and Client, Fabric Extend, and Zero-Touch Fabric Connect*.
• MACsec and Enhanced Security Mode options.
