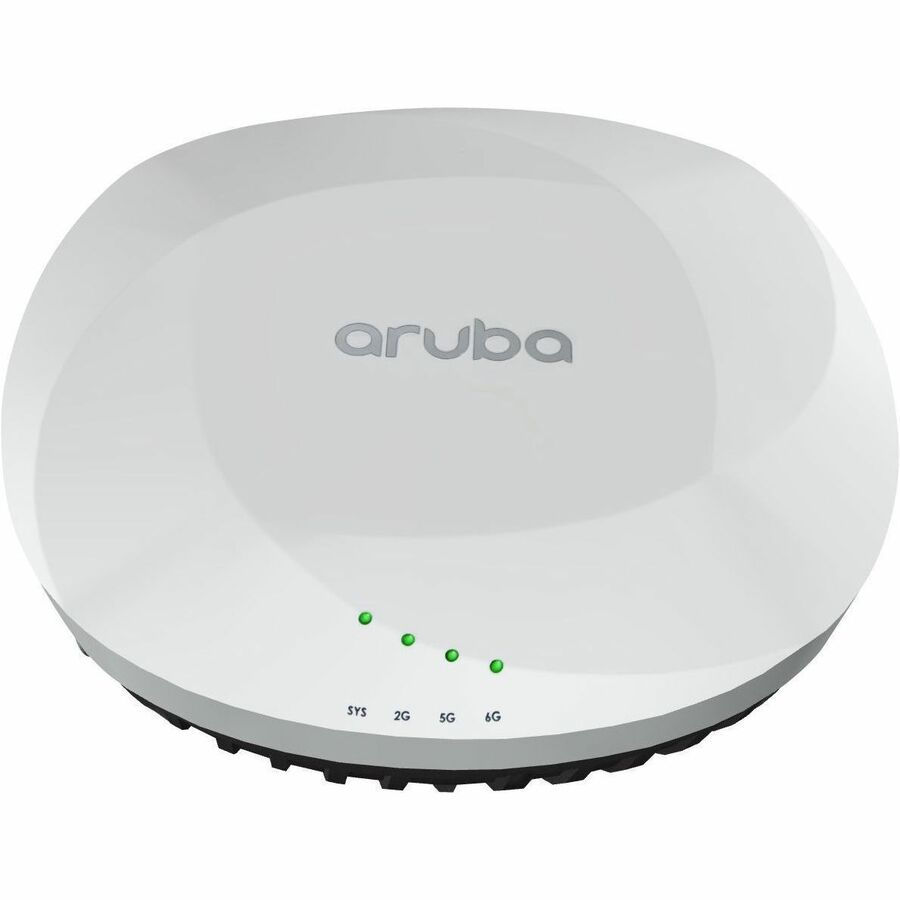

HPE AP-615 Tri Band Wi-Fi 6E IEEE 802.11 a/b/g/n/ac/ax 3.60 Gbit/s Wireless Access Point - Indoor

HPE AP-615 Tri Band Wi-Fi 6E IEEE 802.11 a/b/g/n/ac/ax 3.60 Gbit/s Wireless Access Point - Indoor

HPE Aruba Networking 610 series Wi-Fi 6E campus access points

Fast, resilient, and secure Wi-Fi 6E connectivity in a compact and affordable platform

For enterprises who need more wireless capacity and/or wider channels, HPE Aruba Networking 610 Series Campus APs are designed to take advantage of the newly available 6 GHz spectrum using a unique dual-radio/tri-band architecture. Adding support for the 6 GHz band to the traditional 2.4 GHz and 5 GHz bands more than doubles the available wireless capacity in a wireless network - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices, and growth in cloud.

Unique to the 610 Series features two radios that can be tuned to any two of the three available spectrum bands for Wi-Fi (2.4 GHz, 5 GHz, 6 GHz).

This flexibility provides a cost-effective and compact platform that delivers full tri-band coverage as part of a multi-AP deployment and can be used with software that will intelligently and flexibly configure the radios of each of these dual-radio APs.

More capacity and wider channels

The 610 Series APs are designed to take advantage of Wi-Fi 6E and the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. Its two 2x2 MIMO radios deliver a combined peak data rate of up to 3.6 Gbps when configured for concurrent 5 GHz and 6 GHz operation.

Advantages of 6 GHz

Wi-Fi 6E provides up to 1200 MHz of additional unlicensed spectrum in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and augmented reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices.

Device class support

The 610 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services, which is required for standard class APs.

• Wireless access point supports deployment of a reliable wireless network, helping enable stable data communication across business environments
• 3.60 Gbit/s wireless transmission speed supports fast data exchange, helping maintain reliable wireless communication
• IEEE 802.11 a/b/g/n/ac/ax wireless LAN standard supports dependable communication, helping devices exchange data reliably
• Connecting to 2.5 gigabit ethernet Ethernet technology supports wired network access, helping improve productivity through stable data connections
• PoE PD port supports receiving power directly from a PoE source, helping supply appropriate operating voltage to internal components
• Data Encryption helps protect transmitted and stored information on the network, supporting safer wireless communication
• Internal antenna form factor allows practical positioning, helping maintain signal performance across varied mounting locations
• Ceiling Mountable form factor supports comfortable long?term use, helping maintain consistent operation
