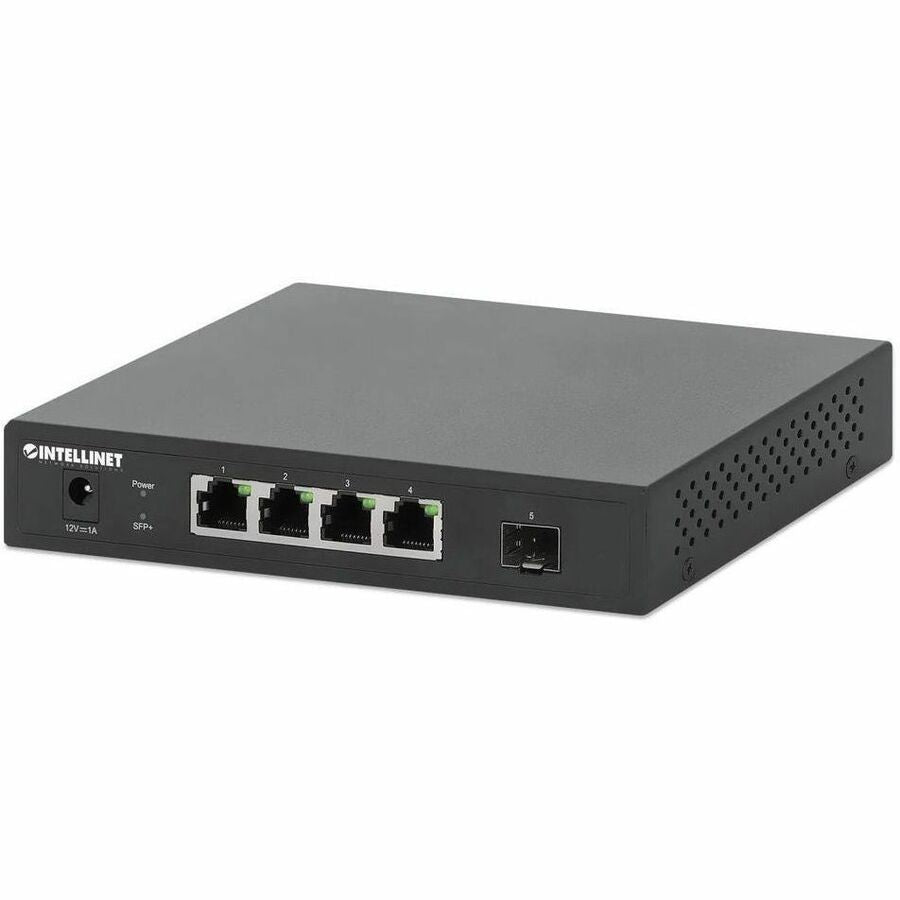

Intellinet 5-Port Switch with 4 x 2.5G Ethernet Ports and 1 SFP+ Uplink

Next-gen 2.5 Gbps Desktop 4+1 Port Network Switch - Supports 10/100/1000/2500 Mbps and 10G Uplink

The 5-Port Switch with 4 x 2.5G Ethernet Ports and 1 SFP+ Uplink from Intellinet Network Solutions passes data to a number of end devices. Equipped with four multi-gigabit Ethernet copper ports, this Switch can deliver network speeds up to 2500 Mbps.

Eliminate bottlenecks with 2.5G capability - great for high-bandwidth Wi-Fi 6 IEEE 802.11ax Access Points and more

Since at least the arrival of Wi-Fi 6 (but even with legacy Wi-Fi 5 [802.11ac]), "regular" Gigabit Ethernet ports have been at their bandwidth limits when connecting to wireless networks. This Switch's ability to support 2.5GBASE-T means it can deliver data to wireless APs faster and better accommodate other higher-bandwidth devices in your enterprise network.

10 Gigabit Ethernet (IEEE 802.3ae) on the SFP+ Uplink

Equipped with a 10G SFP+ open slot, this switch is the ideal solution for cost-sensitive organizations considering 10 Gigabit Ethernet. With 10G technology going mainstream and becoming ever more popular, the need for additional bandwidth has become more urgent than ever - even in smaller networks. Whether you wish to connect servers, network-attached-storage units or NVRs at 10 Gbps, or even simply connect to another gigabit switch without resorting to LACP techniques, 10G provides the solution. And in case you are not quite ready for 10G just yet, it will happily take standard 1G SFP transceiver modules until the time is right for you to make the switch.

• Four ultra-fast 2.5GBASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
• 10/100/1000/2500 Mbps auto-sensing ports that automatically detect optimal network speeds
• One small-form-factor pluggable SFP/SFP+ module slot for 10G uplink capability
• 40 Gbps switch fabric / switching capacity
• Backward compatible with 10/100/1000 Mbps devices
• Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
• Supports jumbo frames up to 12 kBytes
• Store and forward switching architecture
• Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
• Supports 4k MAC address entries with Auto-learning and Auto-aging
• Buffer memory of 8.1 Mbits
• Compact desktop format with rugged metal housing
• LEDs for power and link/activity
• Fanless design for silent operation
• Desktop-size metal case

• Ethernet Switch supports network continuity by maintaining data transmission during operation
• Create a local wired network and connect compatible devices using 4 ports to support basic communication needs
• Lets you connect to the 2.5 gigabit ethernet Ethernet technology to support network connectivity and improved operational productivity
• Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
• Desktop form factor supports placement outside dedicated wiring enclosures for accessible device positioning
• Unmanaged design enables immediate wired network expansion through fixed configuration without manual intervention
• Twisted pair cable support enables cost?efficient network connections for data transmission across distances
• AC power source supports consistent electrical supply for device operation
• Cascade connections to other network devices through the uplink port to extend a local area network topology
