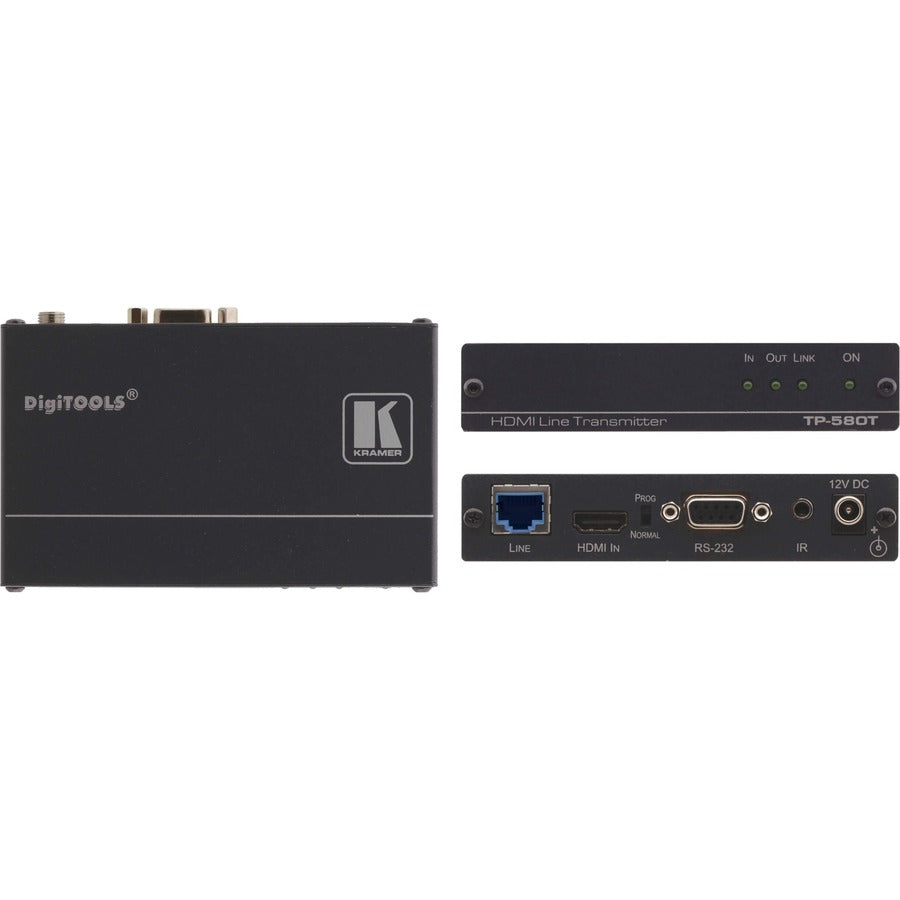

Kramer 4K UHD HDMI, Bidirectional RS-232 & IR over HDBaseT Twisted Pair Transmitter

Kramer 4K UHD HDMI, Bidirectional RS-232 & IR over HDBaseT Twisted Pair Transmitter

The TP-580T is a high-performance, HDBaseT twisted pair transmitter for 4K@60 UHD (4:2:0), 2Kx4K HDMI, bidirectional RS-232 and IR signals. The TP-580T inputs HDMI, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-580R receiver.

• Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
• HDTV Compatible.
• HDCP Compliance.
• Resolution Support - 4K@60 UHD (4:2:0), 2Kx4K.
• HDBaseT™ Technology.
• HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
• 3D Pass-Through.
• EDID PassThru - Passes EDID signals between the source and display.
• Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS-232 interface, allowing status requests and remote control of the destination unit.
• System Range - 70m (230ft) at 2K, 40m (130ft) at 4K UHD resolutions.
• Cable - For optimum range and performance using HDBaseT™, use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.
• Indicators - Status LEDs for input, output, link and power.
• Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T universal rack adapter.

• Video Extender Transmitter provides efficient and feasible audio/video transmission, decoding, and extending
• 4096 x 2160 maximum video resolution for a spectacular, sharp display with added reliability
• HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
• Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
• The TP-580T video extender transmitter provides plenty of freedom with wired connectivity
• 1 input devices supported for maximum productive usability
• 229.66 ft maximum operating distance to allow efficient coverage and maximum usability
• 4K graphics mode for stunning, lively video quality
• Rack-mountable video extender transmitter allows a clutter-free, convenient coding/decoding with increased efficiency
