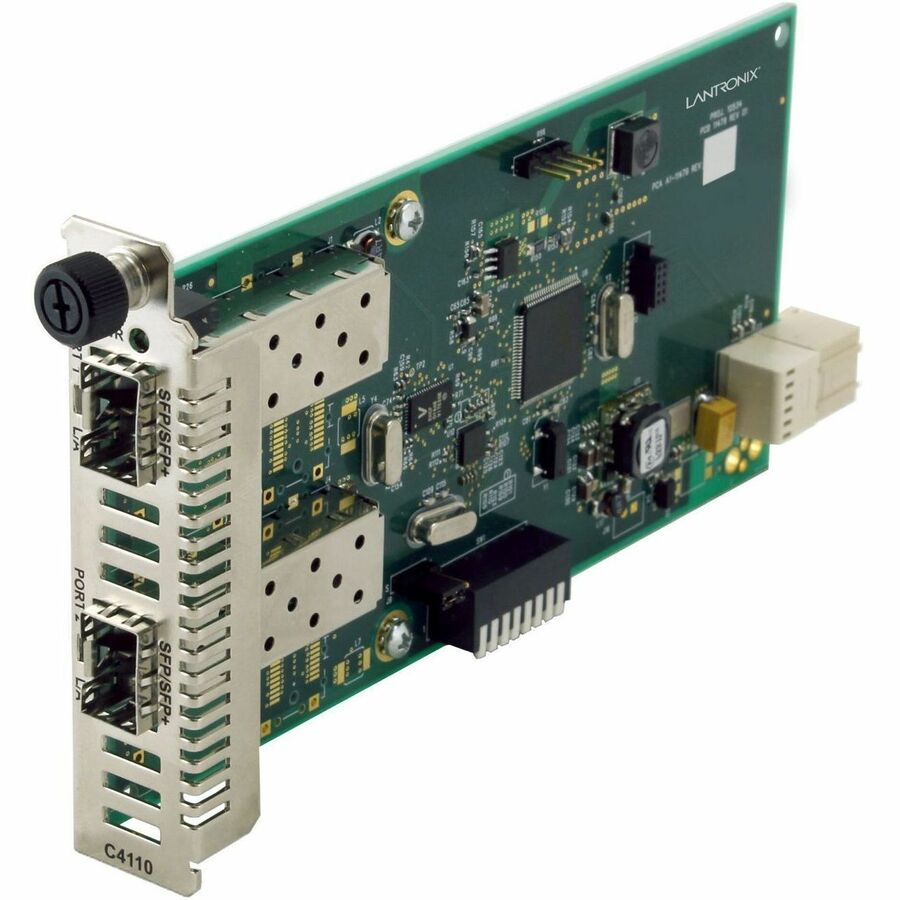

Lantronix ION Fiber to Fiber Media Converter Module

The C4110 is a fiber to fiber media converter module. It is protocol independent and supports data rates from 1Gbps to 11.5Gbps through two open SFP+ ports. This allows network managers to customize the C4110 with a pair of SFP+ modules to meet their network requirements. The open SFP+ port supports a wide variety of Lantronix 10Gbps SFP+ fiber modules. This any-rate to same-rate converter can be used to perform reliable and cost-effective single mode to multimode conversion or it can be used to provide wavelength conversion in CWDM applications. The ION C4110 is a manageable device when installed in a managed ION chassis.

• Fiber to fiber repeater
• Remotely Managed when installed in a Managed ION Chassis
• Supports data rates from 1Gbps to 11.5Gbps
• Support Any-rate to Same-rate
• Protocol Transparent supports: Ethernet: 10Gig LAN, 10Gig Wan, 1Gig LAN, Fiber Channel: 10, 8, 4, 2, 1Gig, SONET/SDN OC-192, OC-48
• SFP to SFP or SFP+ to SFP+
• Provides conversion between different types of fiber
• Supported transmission distance based on the SFP modules and type of fiber used
• Supports 3R (Reamplify, Reshape, and Retime) signal regeneration
• No frame size limitations
• Use as a fiber mode converter
• Use as a specific wavelength CWDM Transponder
• Also available as a stand-alone converter: S4110-4848
