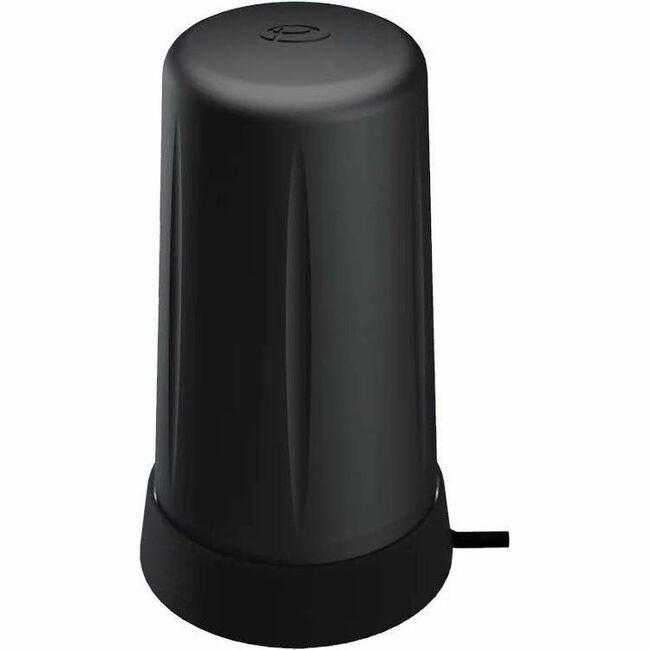

LOW PROF ANT 617-6000 MHZ 5M SMA

The LPBEM-6-60 is a high performance SiSo LTE antenna covering 617-960/1710-6000MHz.

The Panorama LPBEM-6-60 is a range of low cost high performance magnetic mount antennas for temporary fit applications. At only 95mm (3.7") high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear.

The LPBEM offers excellent performance across a wide bandwidth. The LPBEM covers global cellular and LTE frequencies from 617-960 MHz and 1710-6000 MHz making it an extremely versatile product. Although intended for magnetic mounting on a conductive ground plane the antenna can also be used for desk mounting applications with some impact on performance.

Supplied with a convenient length of flexible RG174 cable and a double sided adhesive pad, the LPBEM is easy to install and compatible with a large range of modems. Multiple units can be deployed suitably separated for MiMo applications.

• Medium dB gain antenna
• Magnetic mount solution
• Covers all 2G/3G/4G/5G LTE cellular bands from 600-6000MHz
• Low profile wideband antenna
• Cost effective solution
• Robust product with integrated cable of various lengths
