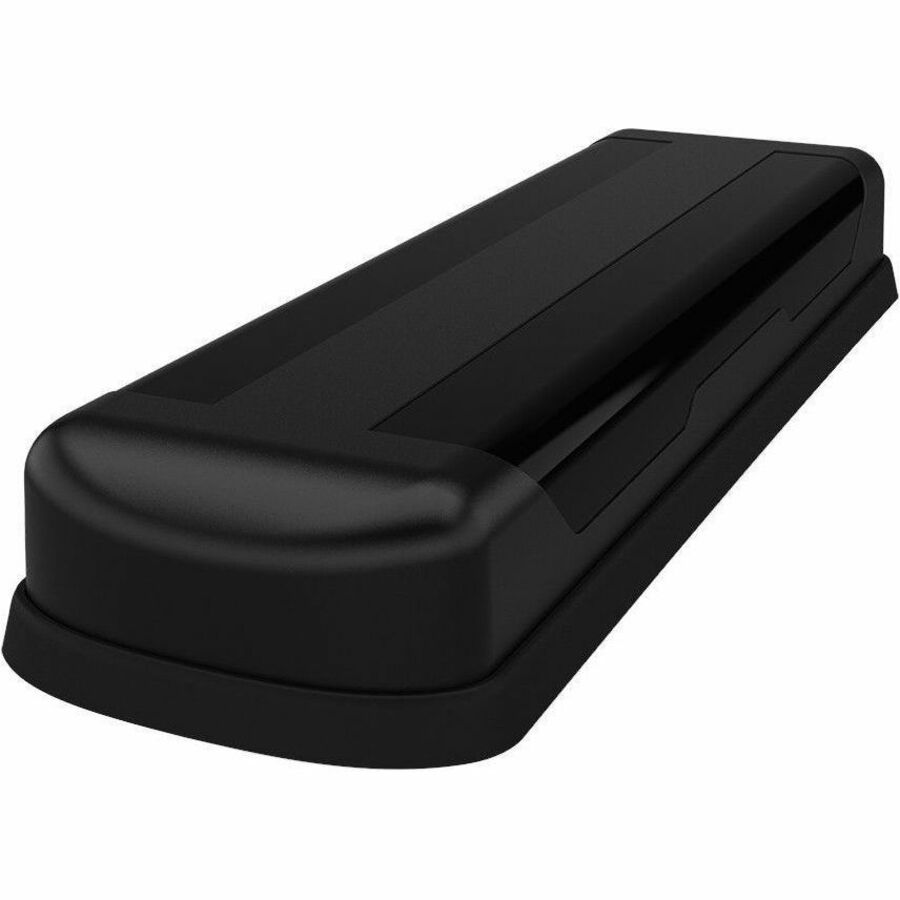

MEGALODON 11-1 BLACK

The industry leading Megalodon range has been developed to provide 2x 44 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and/or 5G modems. This can be combined with a number of other functions including single/dual band GPS/GNSS and up to 88 MiMo WiFi elements covering 2.4-7.2GHz (WiFi 6e/7).

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant low-loss CS30 cables (Compliant to UN ECE R118) and a halogen free, flame retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation.

The LGM variants have an integrated GPS/GNSS module supporting either L1 only or L1/L5 frequencies. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.

• Delivers?enhanced performance at 617 MHz to 960 MHz operating frequency range
• This antenna is ideal for use and provide connectivity to your cellular network
• Offers up to 30 dB gain
• Receive signals from multiple directions with this omnidirectional antenna
• Antenna can be mounted as panel mount
