Mellanox 100Gb/s QSFP28 Optical Transceiver

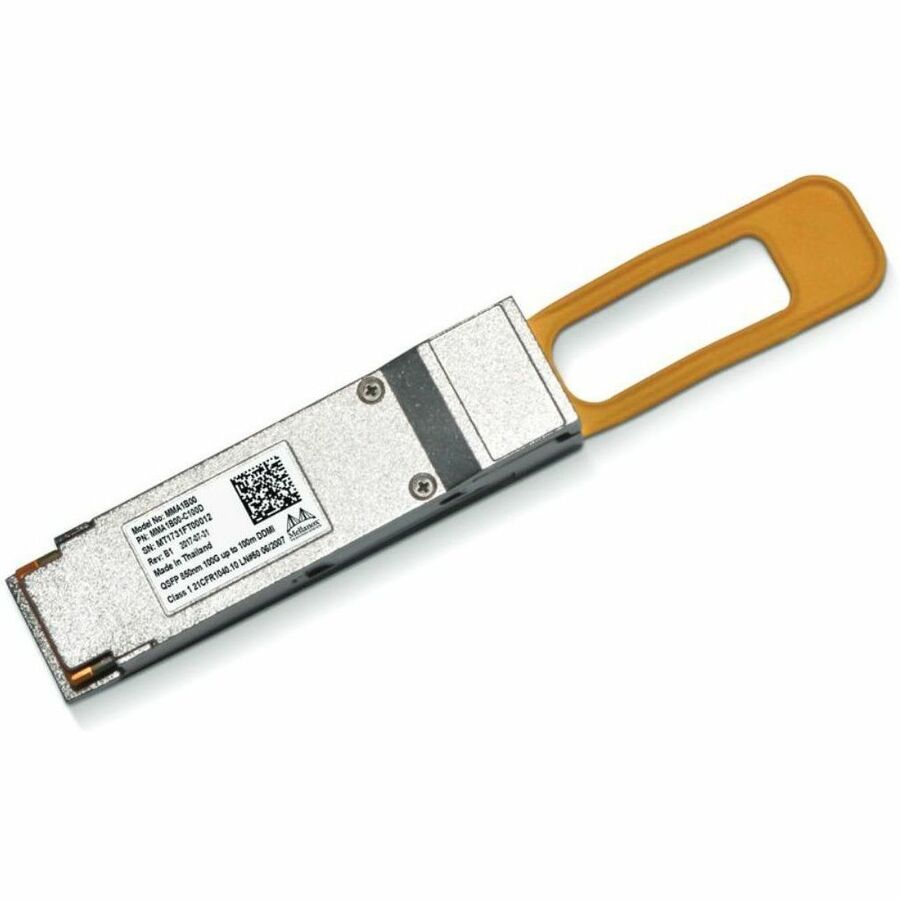

Mellanox 100Gb/s QSFP28 Optical Transceiver Mellanox® MMA1B00-C100 is a 4-channel, pluggable, QSFP28 optical transceiver, designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant.

The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd.

The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds:

-Temperature with warning/alarm

-Supply voltage with warning/alarm

-Laser bias current

-Transmitted optical power with warning/alarm

-Received optical power with warning/alarm

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

• QSFP28 is the single answer to all your desired and specified application execution needs
• With 100GBase-SR4 technology, get up to 100Gbps data transfer rate over optical fiber cable
• Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
• Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
• With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
• Hot-pluggable form factor for your convenience and simplicity of usage
• QSFP28 with optical network application/usage for maximum productivity and usability
