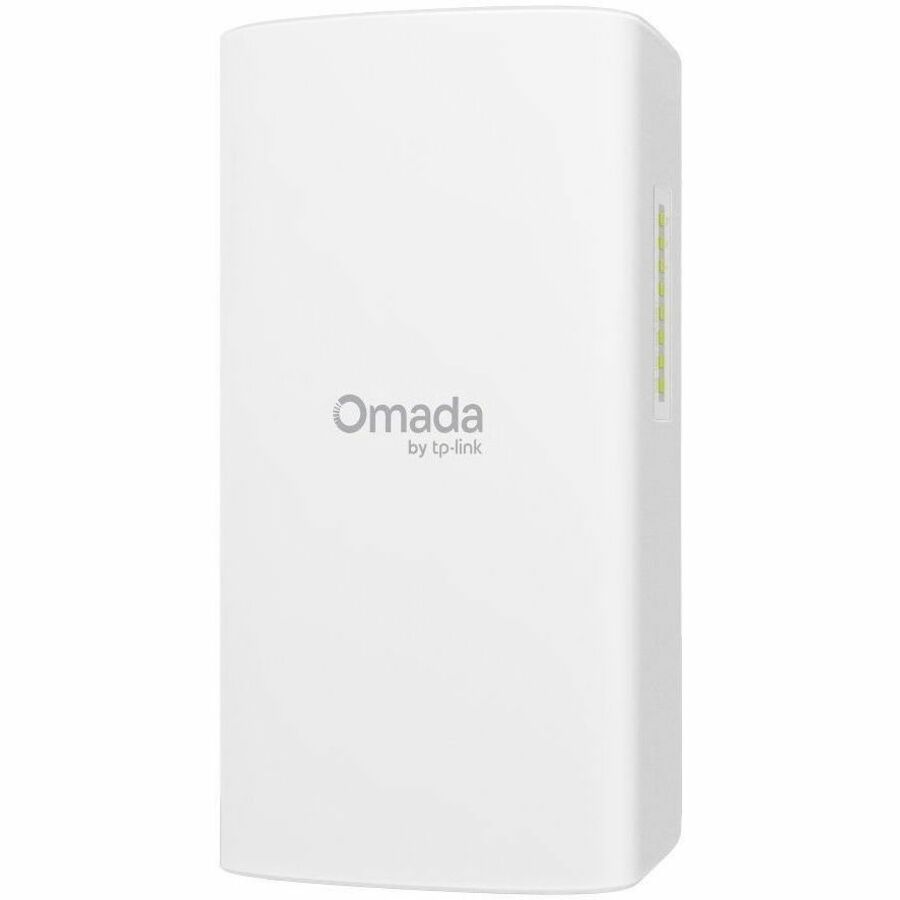

Omada Flex Dual Band Wi-Fi 5 IEEE 802.11a/n/ac 867 Mbit/s Wireless Bridge - Indoor/Outdoor

Omada Flex Dual Band Wi-Fi 5 IEEE 802.11a/n/ac 867 Mbit/s Wireless Bridge - Indoor/Outdoor

Flexible Bridge Point for 3.1 mi (5 km) Transmission

Delivers speeds up to 867 Mbps on 5 GHz with integrated 17 dBi high-gain dual-polarized directional antennas for long-range, uninterrupted wireless transmission.

Flex Bridge Multipoint Deployment Options | Flex Bridges Working Together

Supports point-to-point and multipoint bridging between Flex Bridges, optimized at around 8 connected nodes.

Flex Bridges Connected to a Sector Bridge

When paired with a Sector Bridge hub, supports multipoint deployments of up to 32 Flex Bridges.

Powering Surveillance with 2x PoE Out Ports

Features 3 gigabit ports, including 1 PoE In to power the bridge and 2 PoE Out ports delivering up to 10W on a single port or 5W per port when both are used, easily powering IP cameras and simplifying surveillance network expansion.

Role & DIP Switches for Simple Pairing

Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.

Robust Outdoor Design for Long-Lasting Reliability

• IP66 Weatherproof
• 6 kV Lightning Protection
• -40 °C to 70 °C (-40 °F to 158 °F) Working Range

Versatile Power Management: Integrated Edge Power for Any Scenario

Supports 802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC, allowing flexible power supply via a PoE switch, the included passive PoE adapter, or solar power.

Perfect for Surveillance and More

• Business Park
• Resort
• Port
• Factory

• Works with Flex & Sector bridges for Point-to-Point/Multipoint Bridging: Supports bridging between Flex Bridges, optimized for 8 nodes, and up to 32 with a Sector Bridge hub.
• Long-Range 5 GHz 867Mpbs Wireless Bridging up to 3.1 miles: Ideal for extending networks across buildings and remote locations.
• Powering Surveillance with 2 x PoE Out Ports: Features 3 Gigabit PoE ports, including 2 PoE Out ports, easily powering IP cameras and simplifying surveillance network expansion.
• Role & DIP Switches for Simple Pairing: Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.
• Easy Alignment with Ball-Joint & Versatile Installation: Flexible wall and pole mounting with an optional ball-joint, allows for quick angle adjustment and fast deployments.
• Industry-Leading IP66 Weatherproof: IP66 weatherproof and 6 kV lightning protection safeguard your network in harsh outdoor environments.
• Flexible Power Supply Options: Supports 802.3at/af, Passive PoE
