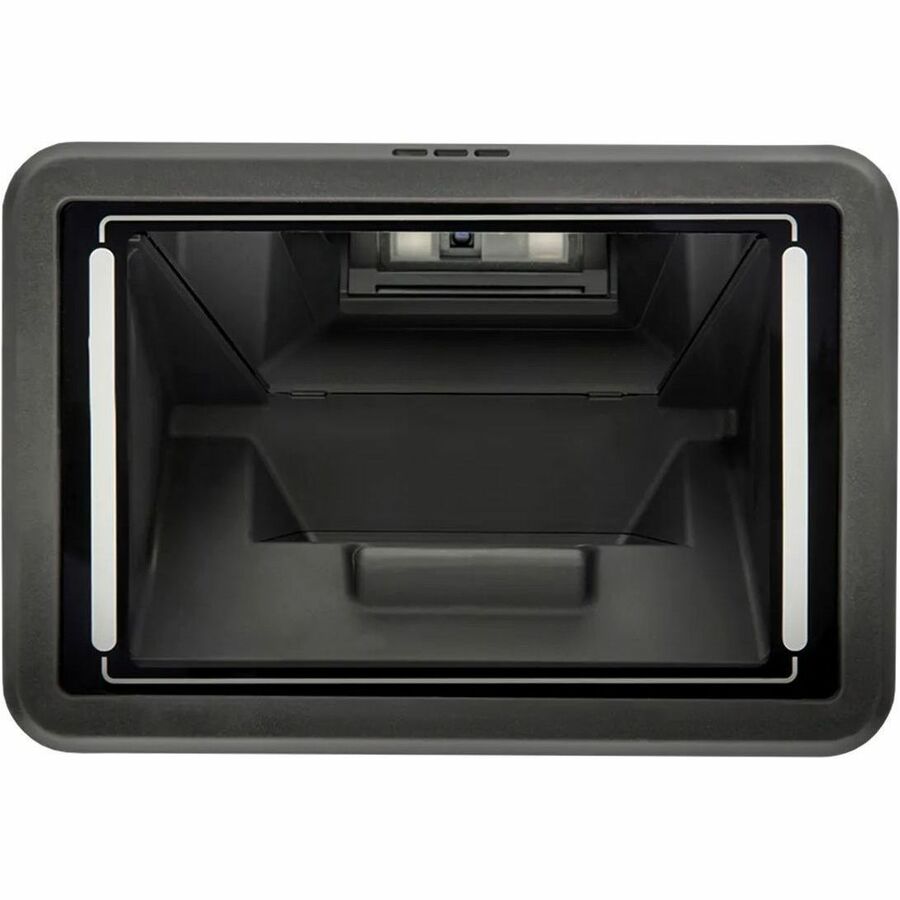

Opticon 2D CMOS Presentation Scanner

2D CMOS Presentation Scanner

The M-11 is a high speed, omnidirectional 2D imager barcode scanner that incorporates Opticon's latest digital imaging technology. Its shape and size make it a perfect fixed mount scanner for a variety of applications within retail, healthcare, manufacturing, transportation and logistics. The M-11 can be used as a standalone scanner in customer-facing areas or integrated into a kiosk, medical instrument, ticketing machine or other third party devices that require hands-free, ultra-fast, 1D or 2D barcode scanning performance.

Product highlights for the M-11 include:

• High speed 2D CMOS imager-omnidirectionally scans up to
• 120 frames per second
• scanner Rapidly scans and decodes 1D and 2D barcodes including off of
• mobile device screens
• Incorporates MDI-4100 scan engine for improved scanning of low
• quality barcodes and providing exceptional motion tolerance for
• moving applications
• Smart design fits any desk, workspace or countertop
• Can easily be embedded into a fixed mount scanning solution
• Data editing program function captures up to 16 codes on multiple
• images simultaneously
• Ideal size for scanning different forms of identification
• Compact form factor: 3.32" x 1.89" x 4.9" (w x h x d) and
• 7.44 ounces
• IP42 rating against dust and moisture, survives multiple 5 foot
• drops onto concrete
• Trigger modes: manual and auto-trigger
• Flexible cable outlet: 4 directions
• Communication interfaces: USB (HID, COM)
• Two year warranty

• High speed 2D CMOS imager-omnidirectionally scans up to 120 frames per second
• Rapidly scans and decodes 1D and 2D barcodes including off of mobile device screens
• Incorporates MDI-4100 scan engine for improved scanning of low quality barcodes and providing exceptional motion tolerance for moving applications
• Smart design fits any desk, workspace or countertop
• Can easily be embedded into a fixed mount scanning solution
• Data editing program function captures up to 16 codes on multiple images simultaneously
• Ideal size for scanning different forms of identification
• Compact form factor: 3.32" x 1.89" x 4.9" (w x h x d) and 7.44 ounces
• IP42 rating against dust and moisture, survives multiple 5 foot drops onto concrete
• Trigger modes: manual and auto-trigger
