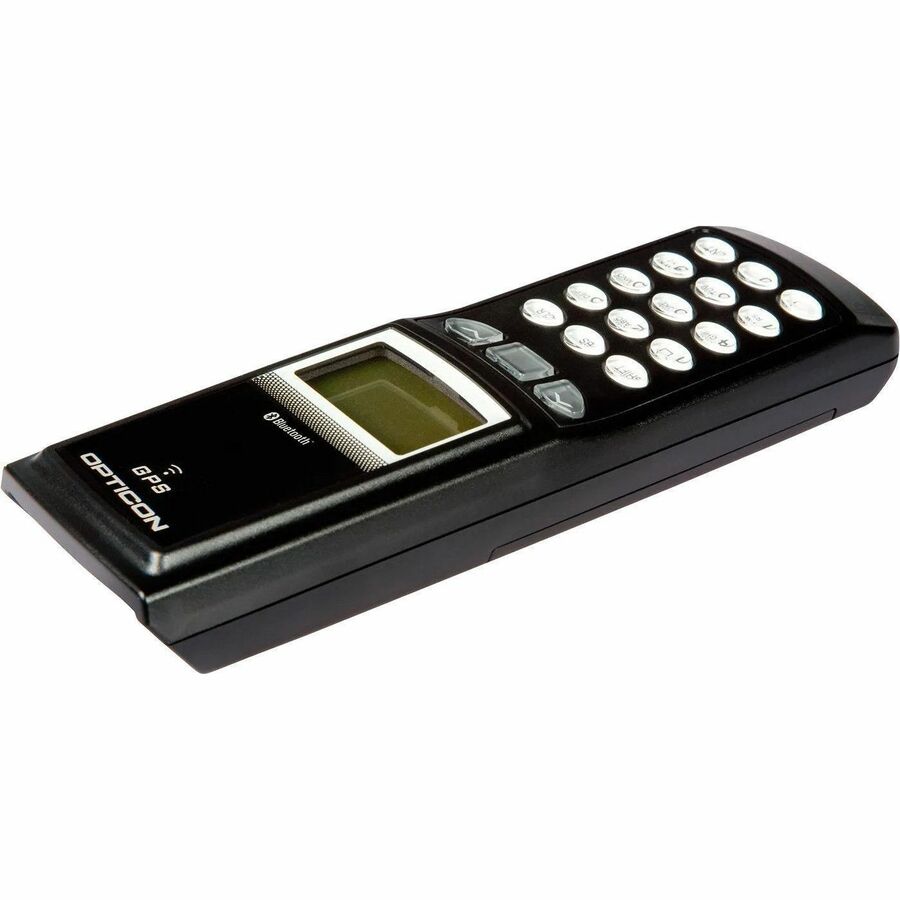

Opticon OPL-9815 Mobile Data Collector

Bluetooth Laser Barcode Scanner with GPS, Screen, and 18-key Operation

The OPL-9815, a Bluetooth™ laser scanner from Opticon, features GPS, a real-time clock and 18-key operation for data-capture applications that require location and time stamps, as well as data entry. The OPL-9815 is perfect for inventory, logistics, warehouse and retail applications. Since the OPL-9815 is programmable, channel partners can create custom solutions around the OPL-9815 using the free SDK from Opticon.

The OPL-9815 can transmit data via Bluetooth™ connection, or store data onboard for later transfer via IrDA through a charging cradle (sold separately). The charging cradle is available with a serial, modem or GSM interface. OPL-9815 product highlights include:

• Wireless laser barcode scanner with GPS - featuring 100 scans per second speed
• HID or SPP Bluetooth™ transmission of data to a host
• 512KB of flash ROM and 512KB of RAM
• 18-key operation
• Monochrome 112x64 pixel screen with back light
• Programmable - free Opticon SDK enables solution providers to create customized scanning solutions
• Compact size and weight - 1.7"W x 5.5"L x 0.9"D; 3.8 oz
• Rechargeable Lithium-Ion battery
• Minimum standby time is 48 hours
• IP54 enclosure rating; withstands 5-foot drop to concrete
• Data can also be transmitted to host via IrDA when OPL-9815 is placed in charging cradle
• Two-year warranty

• Ideal solution for asset management, inventory control and mobile sales automation
• Features 100 scans/second high speed laser barcode scanner
• Wireless Bluetooth (HID or SPP) transmission of data to a host
• Data can also be transferred via USB, RS232 and GSM thought the various communication/charging cradles that are sold separately
• Integrated GPS and real time clock for mobile applications that require location coordinates and time stamps
• 18-key keypad and monochrome 112x64 pixel LCD screen with backlight
• Memory: 512KB of flash ROM and 1MB of RAM
• Compact size and weight: 1.7" x 5.5" x 0.9" (WxLxD), 3.8 ounces
• Rechargeable Lithium-Ion battery
• Rugged: IP54 rating against dust and moisture, survives 5 foot drops to concrete
• Programmable - free Opticon SDK enables solution providers to create customized scanning solutions
• Two year warranty
