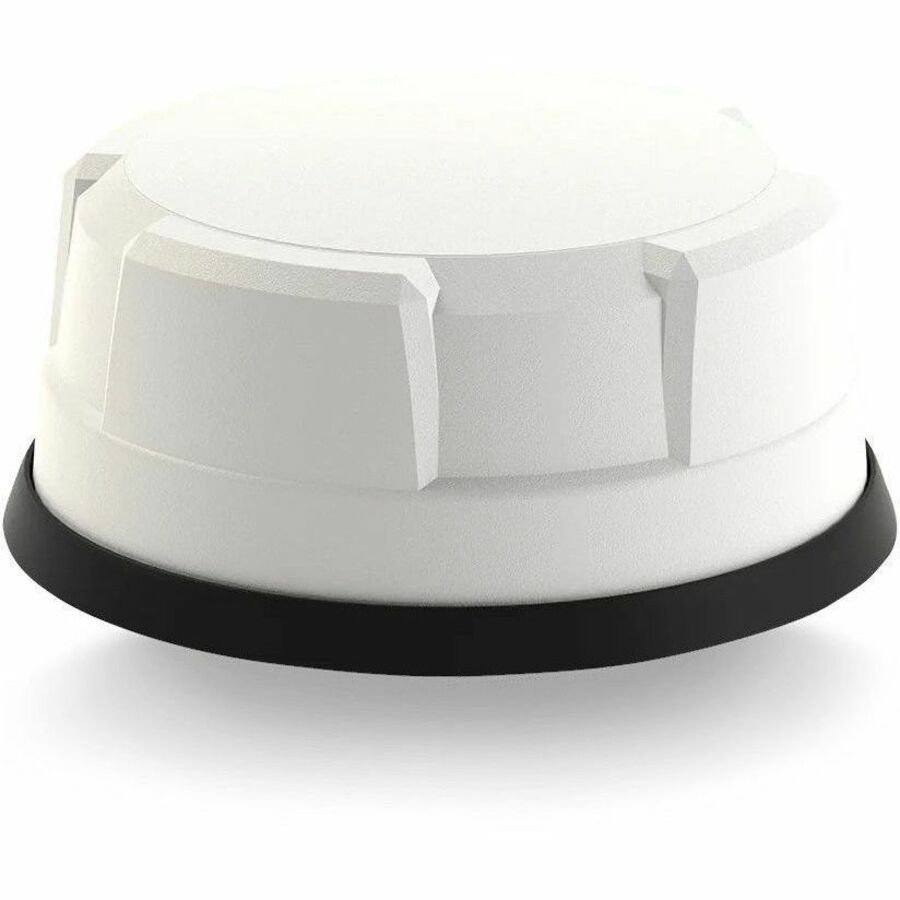

PANORAMA 5G 11-1 DOME FOR CRADLEPOINT W

The MAKO 5G Dome is a range of high-performance 44 MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 22, 33 or 44, or 66 MiMo/Diversity at 2.4/5.0/7.2GHz.

The MAKO 5G Dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 & 5.0/7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.

Although the LTE elements are designed for 44 MiMo operation, it is possible to utilize these as 2 pairs of 22 MiMo for a router that has 2 SIMS (radio) in a failover configuration (i.e. only one SIM active at any time). As this configuration is using only 2 out of the 4 antennas for a single SIM, the network coverage should be checked to ensure that this use is suitable.

• Delivers?enhanced performance at 617 MHz to 960 MHz frequency
• This antenna is an excellent choice for cellular network
• Operates at 26 dB gain
• Receive signals from multiple directions with this omnidirectional antenna
• Can be mounted as panel mount
