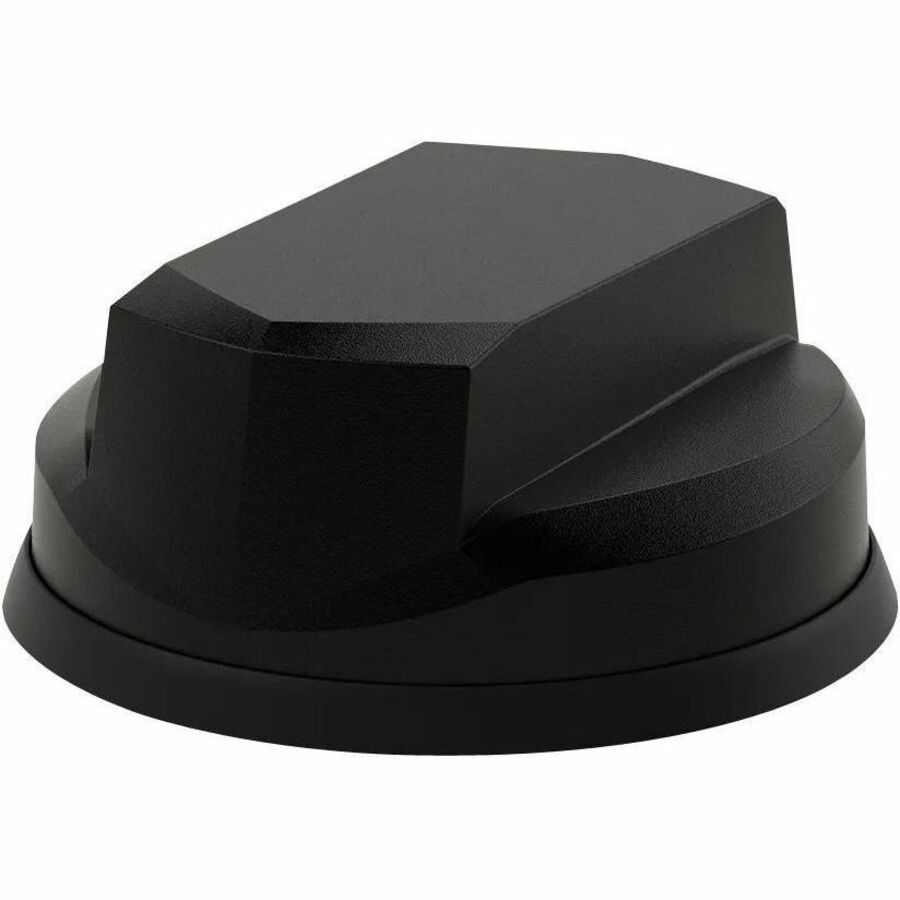

PANORAMA 5G 9-1 DOME FOR CRADLEPOINT BLK

The LG-IN2448 is a high performance 2x2 MiMo LTE, 6x6 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz.

• Low profile antenna with 9 functions in 1
• 2x2 MiMo 4G/5G LTE cellular, 6x6 MiMo Dual Band WiFi and GPS/GNSS in one housing
• Kits with extension cables available for a range of LTE routers
• Suitable for Cradlepoint COR IBR900 Series Routers

The LG-IN2448 range has been designed to provide 2x2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 6x6 MiMo WiFi 2.4/5.0GHz.

The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.

• Designed to operate at 617 MHz to 960 MHz operating frequency range
• Designed for wireless router
• Eases up the installation procedure thanks to its 360-degree horizontal pattern
• Designed to be light in weight and easy to install
