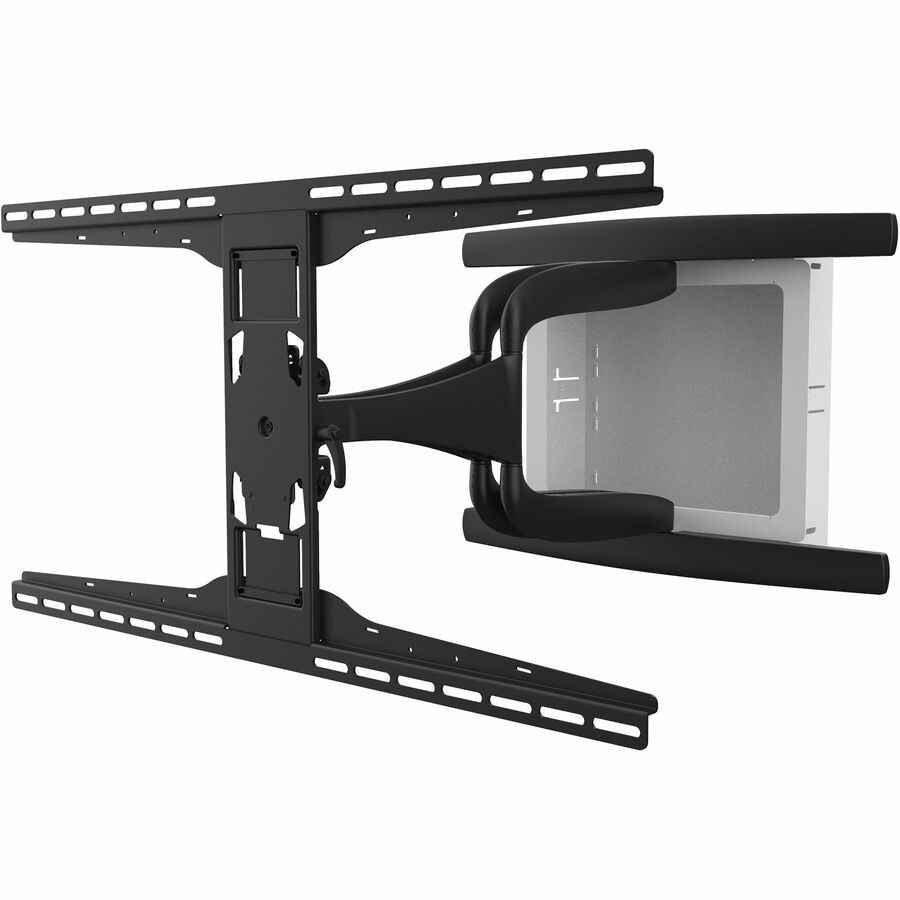

Peerless-AV® DesignerSeries™ Articulating Mount with In-Wall Box for 42" to 90" Ultra-Thin Displays

Peerless-AV® DesignerSeries™ Articulating Mount with In-Wall Box for 42" to 90" Ultra-Thin Displays

Peerless-AV's Articulating Mount with a built-in In-Wall Box is designed to provide a robust solution for low profile/recessed applications requiring access to power and ample space for AV electronics. The articulating mount swings away from the wall to provide access to the rear of the display and components inside the In-Wall Box. IM771PU is ADA compliant when used with displays 2" thick or less.

More from the Manufacturer

• Integrated cable tie locations
• Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
• Knock-outs provide the ability to mount up to four single gang outlets; Compatible with RACO 420 gang box or equivalent
• Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
• Installs between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening
• Knock-outs for 3/4" , 1.0" , 1.25" and 1.5" conduit
• Low profile design provides an ADA compliant solution when used with displays 2" thick or less
• Landscape or portrait mounting options increases display versatility
• Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
• Up to ±90° of side-to-side swivel
• Added ±5° of roll for post-installation display leveling without the use of tools
• Removable mounting plates allow wiring terminations to take place outside of the box to ease the installation process
• Obstruction free In-Wall Box provides ample room and accessibility to equipment
• Remo
