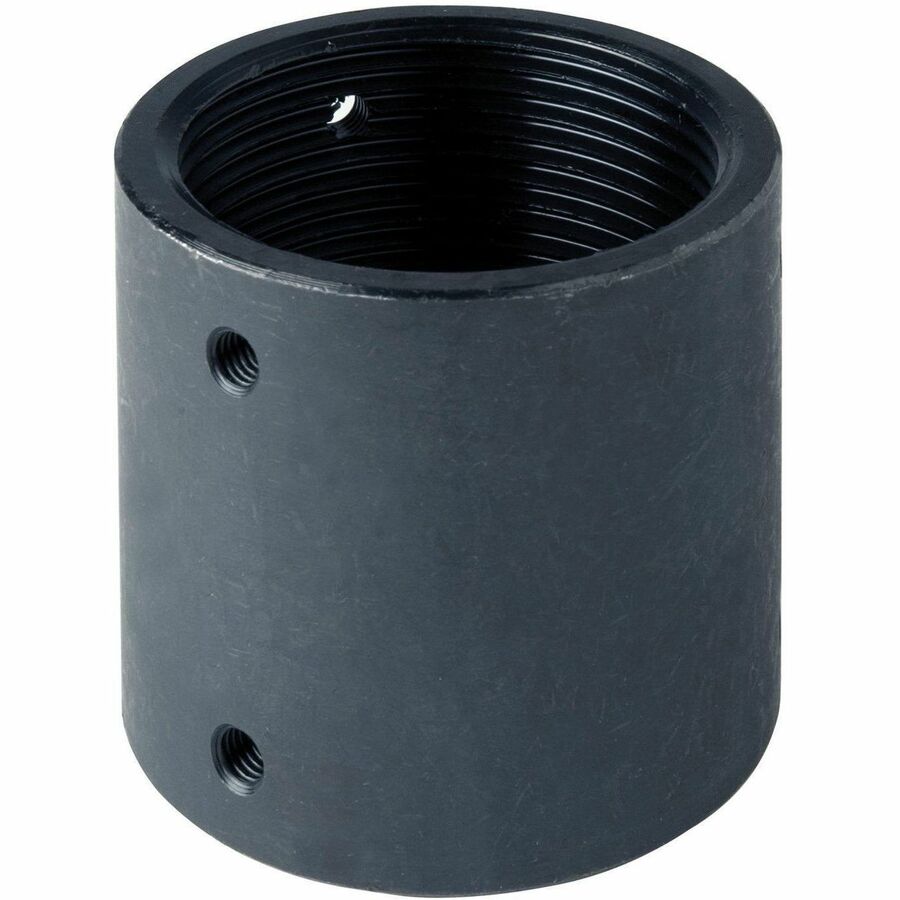

Peerless-AV® Extension Column Connectors

The Peerless-AV® ACC109 and ACC109-W Extension Column Connectors allow two Peerless-AV EXT series extension columns to be joined together, enabling ceiling mount drops of up to 20' in flat panel and projector installations. Each connector features 1-1/2"-11.5 NPS threaded fittings and a 2.2" O.D. low carbon steel body, secured with three M5 set screws equally spaced at 120° on each end. The ACC109 is finished in black fused epoxy; the ACC109-W is finished in white fused epoxy for installations where a lighter finish is preferred. Note: For TV mount installations where equipment exceeds 50lb and the extension exceeds 12', a Stress Decoupler (DCT100 or DCS200) must be used in combination with EXT extension columns.

More from the Manufacturer

• UL Listed for safety assurance
• Indoor use only
• For TV mount installations over 50lb where extension exceeds 12', a Stress Decoupler (DCT100 or DCS200) must be used
• 1,200lb maximum load capacity
• 2.2" O.D. low carbon steel construction
• Secured by three M5 x 0.8 set screws per side, equally spaced at 120°
• 1-1/2"-11.5 NPS (38mm) threaded fittings on both ends for secure column attachment
• Joins two Peerless-AV® EXT series extension columns for a total drop of up to 20' (6,096mm)
