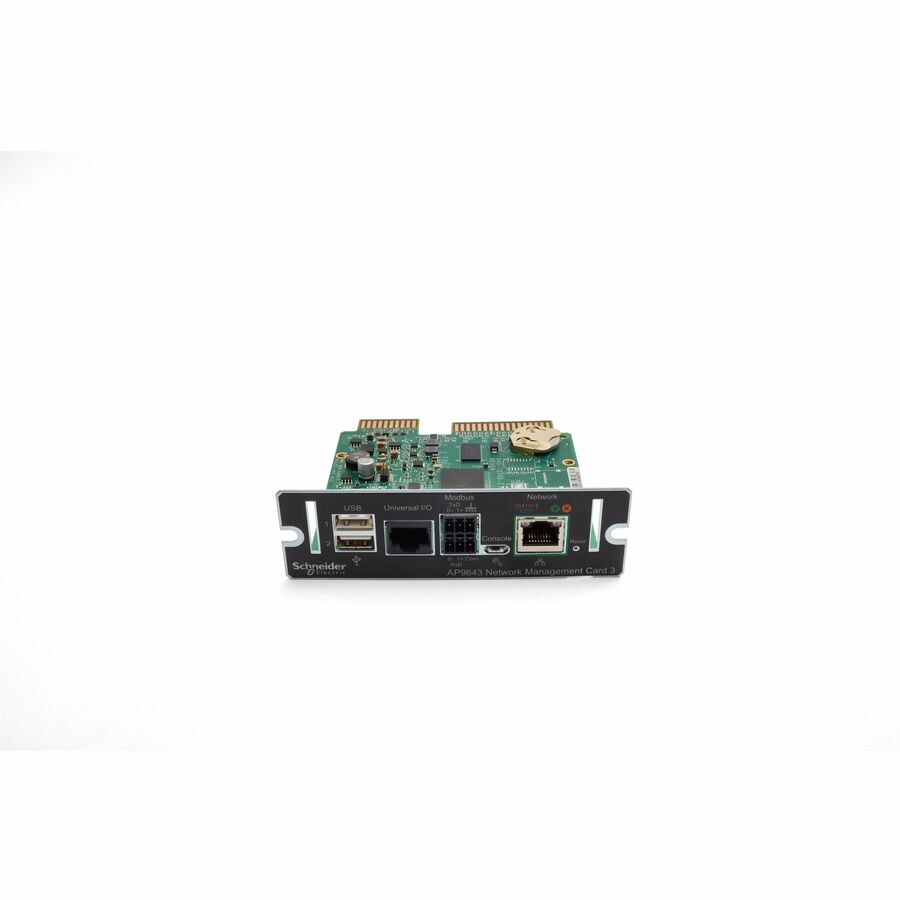

Schneider Electric Device monitoring and management, Network Management Cards, NMC3 with Environmental Monitoring and Modbus, secure remote UPS monitoring and management

Schneider Electric Device monitoring and management, Network Management Cards, NMC3 with Environmental Monitoring and Modbus, secure remote UPS monitoring and management

The Network Management Card 3 enables essential and secure remote monitoring and management of a UPS, giving you mission-critical visibility. The included Universal I/O (UIO) ports enable support for environmental monitoring and the serial RS-485 port supports Modbus RTU. The high-speed processor provides a fast and powerful experience offering Gigabit Ethernet connectivity and simultaneous multiple user logins to the easy-to-use web user interface or Command Line Interface. Take proactive actions and troubleshoot easily with detailed data and event logging for timely resolution. Advanced technology and features keep sensitive data secure with the newest and best-in-class security compliance. The Network Management Card includes a 1-year Secure NMC Subscription which provides access to the latest firmware which is independently certified to the IEC 62443-4-2 standard. Integrates with EcoStruxure IT for efficient management of your equipment, PowerChute Network Shutdown for graceful shutdown, unattended start-up and VM migration options for disaster avoidance and business continuity, and with other SNMP-enabled systems.

• Expandable Input and Output Ports-Supports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory
• IPv6 Support-Capable of operating on a network using IPv6 protocol
• Compatible with all SmartSlot UPSs
• Securely connect via HTTPS/SSL, SSH up to 2048-bit encryption, SNMPv3
• Standard UPS RFC 1628 MIB Compatible-Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps events using RFC 1628 MIB.
• Command line interface-Offers simultaneous remote management access through Telnet and SSH
• Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP BTL certified Single Phase Smart-UPS and Symmetra only.
• Smart Battery Management Support-Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system SRT Smart-UPS only.
• User friendly mechanism to remotely and seamlessly update U
