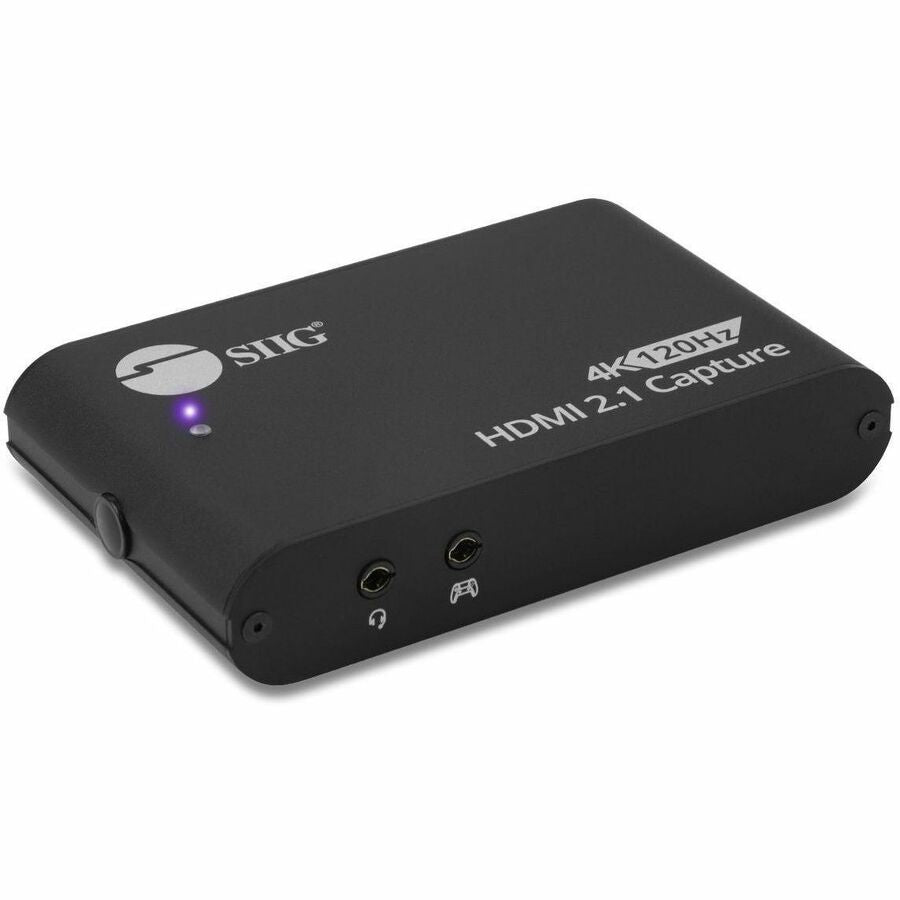

SIIG 4K120Hz HDMI 2.1 Capture Device for Gaming and Streaming - 4K60Hz Capture - 4K 120Hz/144Hz Loopout - USB-C 10Gbps - TAA Compliant

SIIG 4K120Hz HDMI 2.1 Capture Device for Gaming and Streaming - 4K60Hz Capture - 4K 120Hz/144Hz Loopout - USB-C 10Gbps - TAA Compliant

Easily capture and recording 4K60Hz resolution from any HDMI source such as Gaming PC (4K144Hz), Gaming console (4K120Hz), Media players or Set-top box while simultaneously viewing in the HDMI loopout for 4K144Hz / 4K120Hz, 1080p240Hz resolution, USB-C 10Gbps, VRR, Aluminum Housing, ESD Protection, TAA Compliant

Features

Easily capture and record 4K@60Hz HDMI live video with low latency via a USB-C device and up to 10Gbps date transfer, great for gaming, live streaming, training, meetings and more

4K120Hz / 4K144Hz Pass-through & 4K60Hz Capture

Experience lifelike gaming with 4K144Hz (PC) / 2K144Hz (PC) / 4K120Hz (console) / 1080p240Hz HDMI input and pass-through, seamless capture / recording HDMI signals through USB-C 10Gbps, resolution supports 4K60Hz / 4K30Hz HDR / 2K120Hz / 2K60Hz HDR / 1080p240Hz and so on, ensuring every detail is preserved with crystal clarity. Supports various resolution with downscaling and upscaling

Live and Party Chat

Built-in two 4-pole 3.5mm jacks enable connection with a controller and headset for game console party mode, easily control game and chat volume, simultaneous party chat & live commentary recording. One 4-pole 3.5mm cable included, no additional purchase required

Note:1)

macOS max capture: 4K30Hz; 2) 4K144Hz only works in 48G bandwidth, monitor must support 4K144Hz 48G bandwidth, if the monitor only supports 4K144Hz DSC mode, it won't work with 4K144Hz

More from the Manufacturer

• HDMI video input resolution supports 4K@1 44Hz HDR & VRR/2K@144Hz HDR & VRR/1080p@240Hz HDR & VRR
• HDMI video pass-through output resolution supports 4K@1 44Hz HDR & VRR/2K@144Hz HDR & VRR/1080p@240Hz HDR & VRR
• Capture/Recording HDMI signals through USB-C 10Gbps, resolution supports 4K@60Hz/4K@30Hz HDR/ 2K@120Hz/2K@60Hz HDR/1080p@240Hz/1080p@120Hz HDR/1080p@60Hz HDR (*Not Supports 21:9 Ratio)
• Recording format supports NV12, YUY2, MjPEG, P010 (HDR)
• Supports one 4-pole 3.5mm jack for headset (Mic-In/Line-Out)
• Supports one 4-pole 3.5mm jack for gamepad (Console party chat)
• UVC/UAC compliant, also compatible with most 3rd party software such as OBS Studio
• Supports PC game, PlayStation, Xbox, Switch
