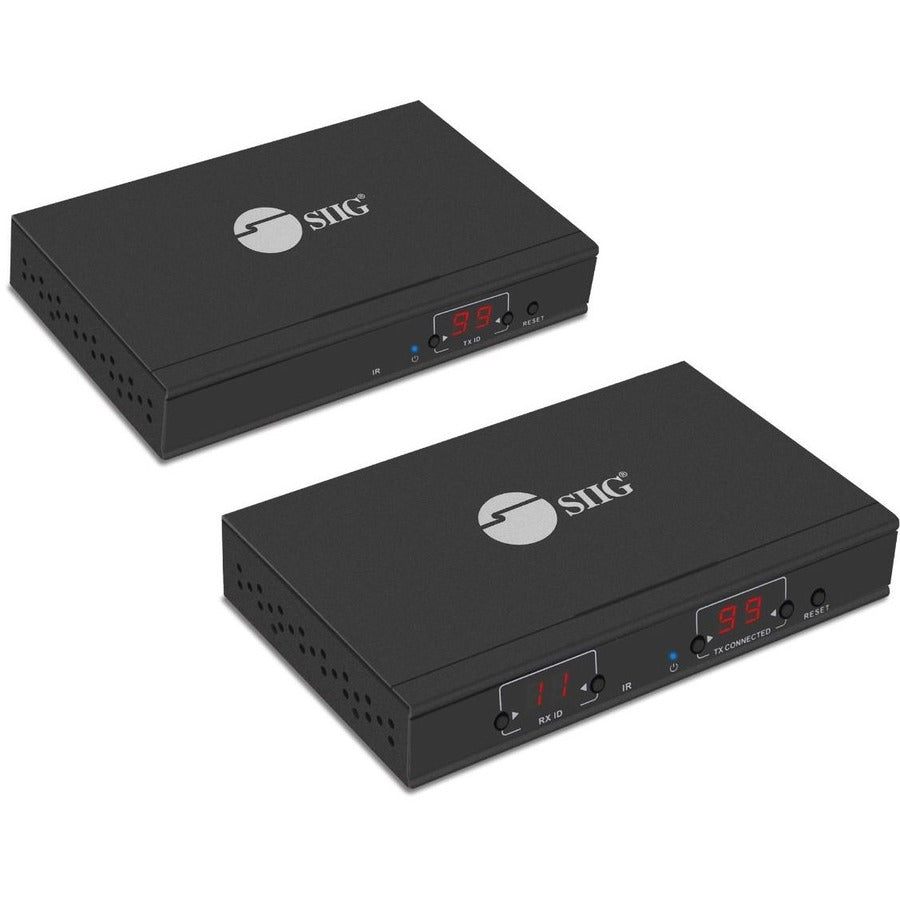

SIIG Full HD HDMI Over IP Extender Kit

Features

• Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters

• Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S2) and receiver units (part# CE-H23C11-S2) sold separately

• Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images

• Supports IR pass back function to control the source device from RX location

• Supports computer control software to select and switch between source devices (Matrix only)

• Supports HDbit-T protocol with H.264 compression over IP

• HDMI output on the transmitter allows you to monitor the HDMI signal at the source location

• RS-232 pass-through connection to control RS-232 enabled devices at either direction

• Video Extender Transmitter/Receiver provides efficient and feasible audio/video transmission, decoding, and extending
• 480p supported video mode for optimal viewing brilliance and efficiency
• 1920 x 1080 maximum video resolution for a spectacular, sharp display with added reliability
• HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
• HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
• Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
• The CE-H23A11-S2 video extender transmitter/receiver provides plenty of freedom with wired connectivity
• 1 input devices supported to better accommodate your specific requirements
• 1 output devices supported to better accommodate your specific requirements
• 393.70 ft maximum operating distance to allow efficient coverage and maximum usability
