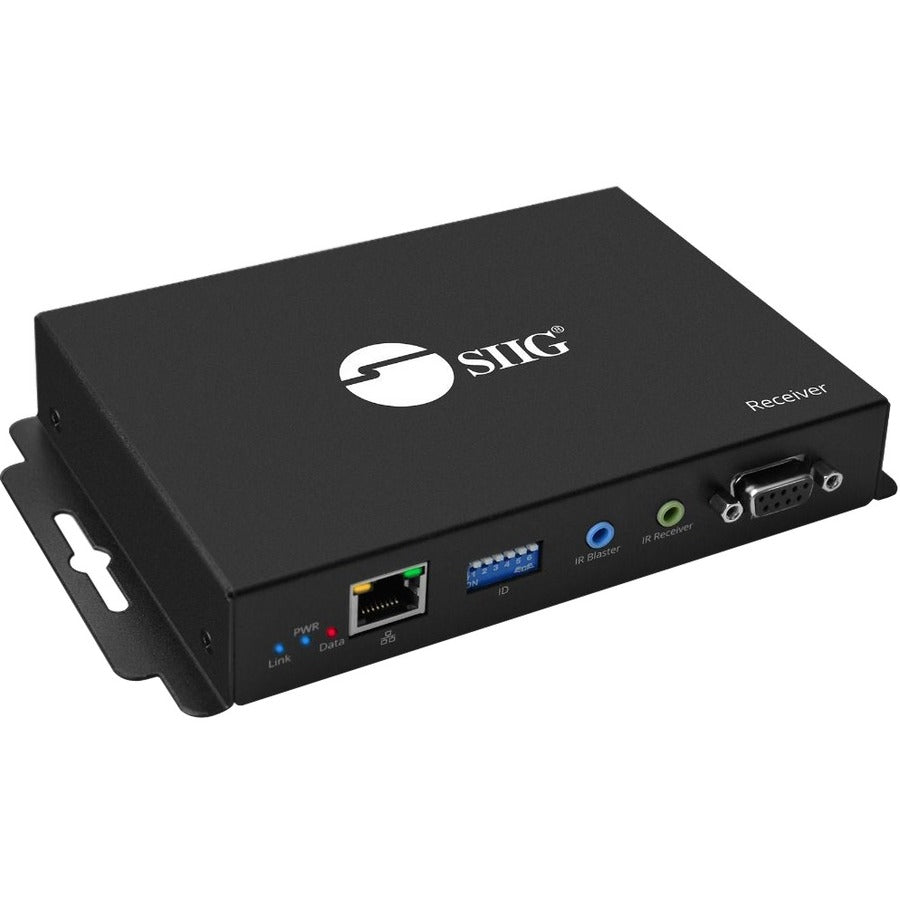

SIIG HDMI 2.0 Over IP Matrix and Video Wall 4Kx2K@60Hz - Receiver

Extends HDMI audio/video signals through IP networks up to 394ft (120m), matrix and video wall configurable on the fly

• HDMI 2.0a and HDCP 2.2 compliant
• Supports HDMI input up to 4Kx2K@60Hz YUV 4:4:4 8bit, HDMI output up to 4Kx2K@30Hz
• Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch
• Supports 4K signals including High Dynamic Range (HDR), PoE, Bi-directional IR path, and Video Wall. Due to the video compression, some distortion may occur in HDR mode
• Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture
• Easy DIP switch matching for multi-casting group configuration
• Supports full frequency IR signal from 20KHz to 60KHz
• Full Duplex RS-232 control up to 115,200 bps
• Supports 180° and 270° clockwise image rotation
• Designed to work with HDMI 2.0 Video Wall Over IP Multicast System - Transmitter, part # CE-H25211-S1 sold separately, and HDMI 2.0 Video Wall Over IP Multicast System - Controller, part # CE-H25411-S1 sold separately

• Video Extender Receiver is a reliable audio/video transmission extending solution
• HDMI in allows convenient transfer of content and data to video extender receiver to ensure maximum dependability
• HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
• Download media from your memory card with the built-in USB along with adequate power supply
• Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
• 1 input devices supported to better accommodate your specific requirements
• 1 output devices supported for maximum feasibility and usage convenience
• 394 ft maximum operating distance to allow efficient coverage and maximum usability
• 4K graphics mode for stunning, lively video quality
