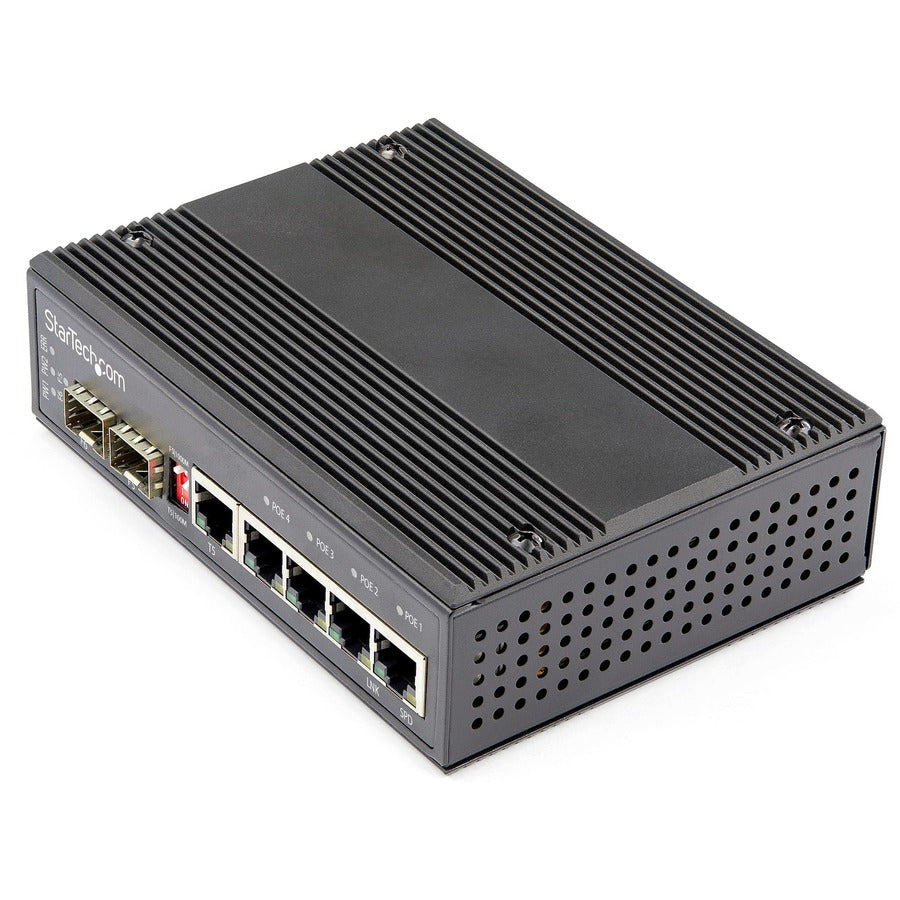

StarTech Industrial 6 Port Gigabit Ethernet Switch, 4 PoE RJ45 +2 SFP Slots 30W 802.3at PoE+ 12-48VDC 10/100/1000 Mbps -40 to 75C, TAA

StarTech Industrial 6 Port Gigabit Ethernet Switch, 4 PoE RJ45 +2 SFP Slots 30W 802.3at PoE+ 12-48VDC 10/100/1000 Mbps -40 to 75C, TAA Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable. Power Over Ethernet & Low Voltage Ideal for powering PoE devices in situations where a traditional power source is not available; it accepts power as low as 12VDC for applications such as transportation (auto/bus/rail) and solar. PoE output is boosted to PoE/PoE+ standards (IEEE 802.3af/at, 55V) in applications where non-standard 12V (or higher) power sources are available. With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like: Cameras Sensors Wi-Fi access points Uses Cat 5e (or higher rated) Ethernet cabling. Flexible Power Input & Low Voltage Power input flexibility between 12/24/48/56V DC and low voltage DC inputs reduces the complexities of installation by avoiding additional in-line devices to boost power before it reaches the switch. This unique switch allows for 5x RJ-45 ports (4x PoE) to be active + 1 SFP, or 4 x RJ-45 (all PoE) + 2 SFP, for 6 device connections total. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 Includes an exterior aluminum heat sink for superior passive cooling; 600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability. Dual Power Inputs Dual power inputs provide redundancy. Accepts dual terminal block power, allowing the product to be hardwired from multiple power sources for high availabilty applications. The IES1G52UP12V is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer

More from the Manufacturer

• Ethernet Switch supports network continuity by maintaining data transmission during operation
• Terminal block plug or connector type supports stable power connection for Ethernet Switch usage
• Cascade connections to other network devices through the uplink port to extend a local area network topology
• Create a local wired network and connect compatible devices using 5 ports to support basic communication needs
• Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
• Wall?mountable design supports installation on vertical surfaces to help organize placement and cable routing
• Unmanaged design enables immediate wired network expansion through fixed configuration without manual intervention
• Gigabit Ethernet supports higher uplink data rates compared to standard Ethernet server connections
• Optical fiber support enables network connections across longer distances for data transmission between network components
