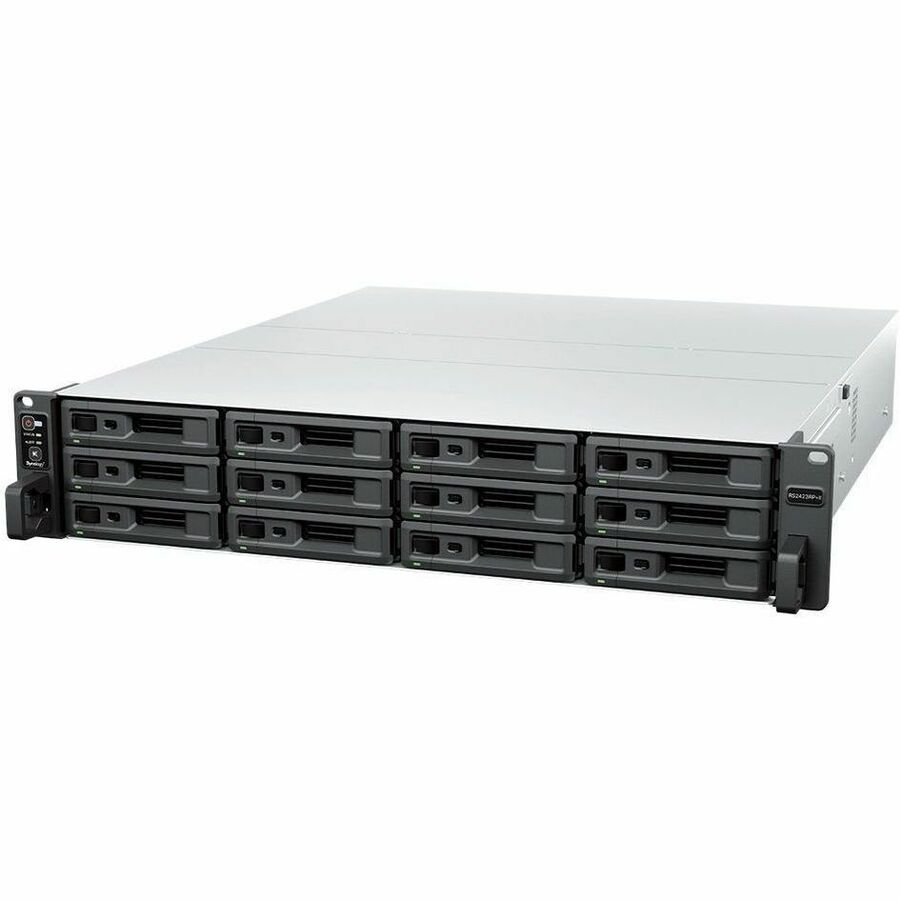

Synology RackStation RS2423RP+II SAN/NAS Storage System

Secure storage for your business | Business-ready

Over 3,500/1,700 MB/s seq. read/write, built-in 10GbE, and up to 240 TB raw storage before expansion.

Flexible Configuration

Add 12 extra drive bays, 1/10/25GbE ports, and SSD cache volumes whenever needed.

Versatile Applications

Back up 300 endpoints, manage 75 IP cameras, or safely sync and share files between devices and sites.

Faster and more responsive

The RS2423RP+II offers exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput. They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.

Designed for reliability

The RS2423RP+II comes with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Two RS2423RP+II units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.

The RS2423RP+II also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.

Room for expansion

Easily adjust the 2U 12-bay RS2423RP+II to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.

Versatile storage for businesses

The RS2423RP+II is ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.

Intuitive storage for on-site and remote teams

Provide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations.

Private file cloud | Enable efficient collaboration with Synology Drive

Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.

Multi-platform support

Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.

Collaborate in real time

Enable concurrent editing of documents, spreadsheets, and slides with Synology Office, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.

Efficient multi-site synchronization | Connect teams with Hybrid Share

Use Hybrid Share to store large sets of data in the cloud, leveraging the large bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices.

Reliable data access on demand

With Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from a reduced local storage footprint and lower bandwidth usage.

Local caching of most-used data

Frequently-accessed files are kept on the local NAS, allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full.

Multi-endpoint data protection

Design an effective backup strategy to maximize data and system availability with a host of native and license-free solutions.

• SAN/NAS Storage System is the single answer to all your desired storage needs
• Robust scalability up to 12 drives to let you expand limitlessly
• Through RAID levels (0, 1, 5, 6, 10, hot spare, basic, hybrid raid, jbod), RAID provides data reliability, fault tolerance and improves overall performance
• DDR4 SDRAM memory technology for dependable data storage with maximum usability
• Perform computational tasks effectively accrediting the amd ryzen 3.35 ghz processor
• RAID technology - data reliability, fault tolerance and improved overall performance
• Rack-mountable san/nas storage system allows a clutter-free, convenient usage with increased efficiency
• Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
• DiskStation Manager OS with all the creative and productive tools you need
