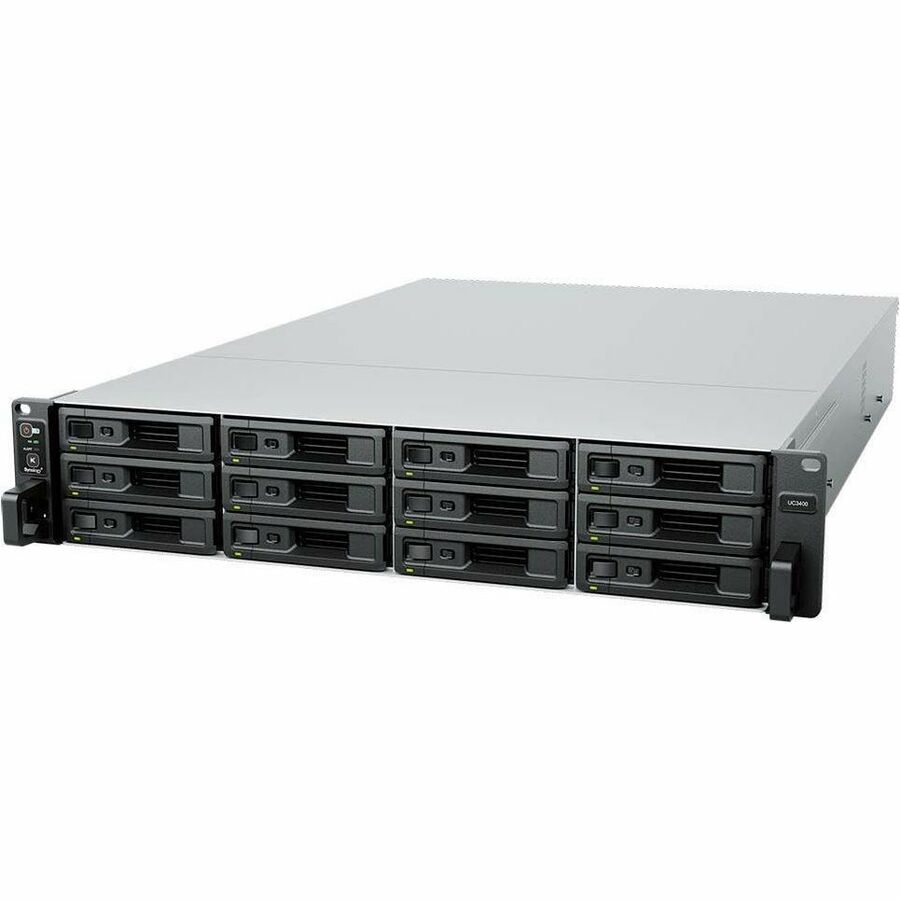

Synology UC3400 SAN Storage System

Reliability and High Availability

Active-active dual controllers work simultaneously to ensure zero downtime in the event of a controller failure while the non-transparent bridge (NTB) enables inter-domain communication to maximize the protection of in-flight data.

Active-Active SAN with enterprise-class performance

Designed for mission-critical environments, UC3400 is a high-availability SAN solution supporting Fibre Channel (FC) and iSCSI protocols. With over 180,000 4K random write IOPS,¹it supports a wide range of demanding workloads.

Virtualization-ready

Full certification for VMware, vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments

Support for Windows Offloaded Data Transfer (ODX), VMware vSphere Storage APIs Array Integration (VAAI), and ALUA ensure optimized and efficient storage operations

OpenStack^®Cinder support enables UC3400 to become a block-based storage component

Flexible network options

Boost network from 10GbE and dual 1GbE RJ-45 ports to 10/25 Gb Ethernet cards or 16 Gb Fibre channel host bus adapters on each controller.²

Built-in data protection and security

Maximize service uptime for critical services and enhance data security with snapshot protection and self-encrypting drive support in UC3400.

Snapshot Replication

Built-in software offers application-aware snapshot protection and instant recovery of virtual machines in iSCSI LUNs in the event of a disaster.

Self-encrypting drive support

Storage expansion

Simple capacity expansion of up to 576 TB of raw storage is available with two Synology RXD1219sas Expansion Units.³

Performance backed by Synology drives

Leverage high sustained performance and reliability with enterprise-grade drives with built-in protection designed for Synology systems.

• SAN Storage System offers maximum storage efficiency and convenience
• Robust scalability up to 12 drives to let you expand limitlessly
• Through RAID levels (0, 1, 5, 6, 10, basic, jbod, raid f1), RAID provides data reliability, fault tolerance and improves overall performance
• DDR4 SDRAM memory technology for fast, easy, and convenient access and retrieval of data and information
• Experience unmatched performance, built-in security and remote management capabilities with Intel Xeon 2.10 ghz processor
• Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
• Optimize business network's performance with 10 Gigabit Ethernet connectivity
• It's diskstation manager operating system offers powerful platform to efficiently run routine applications
