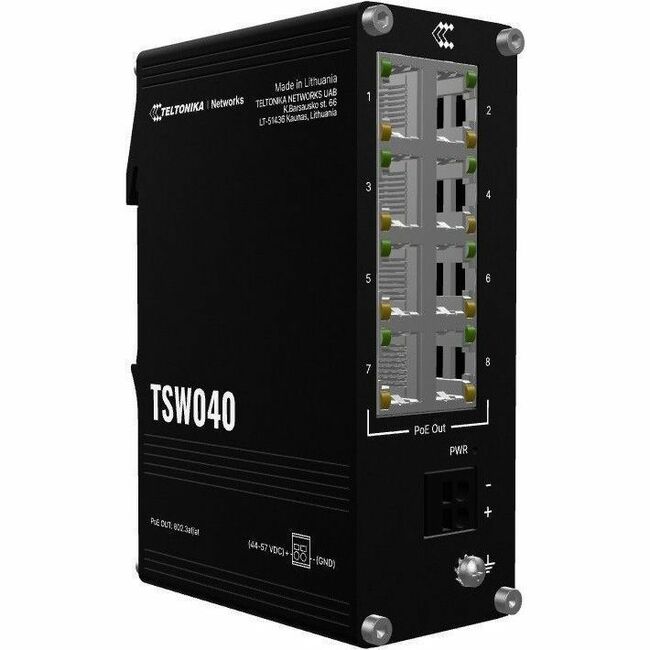

Teltonika 8-port PoE+ Switch

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.

8 X PoE-out RJ45

Eight PoE-out Ethernet ports with a total power budget of 240 W

2-pin Power Input

Simple and suitable for industrial applications

Integrated DIN Rail

Easy mounting for plug-and-play deployment

Wide Voltage Range

7-57 VDC, or 44-57 VDC for PoE-out

• Effectively reduces downtime with improved network performance
• 2-pin DC Power Socket plug/connector type for convenient usage with added dependability
• Features 8 networking ports to easily establish a local network or expand your existing one
• Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
• DIN Rail Mountable form factor for added reliability and dependability
• The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
• Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
