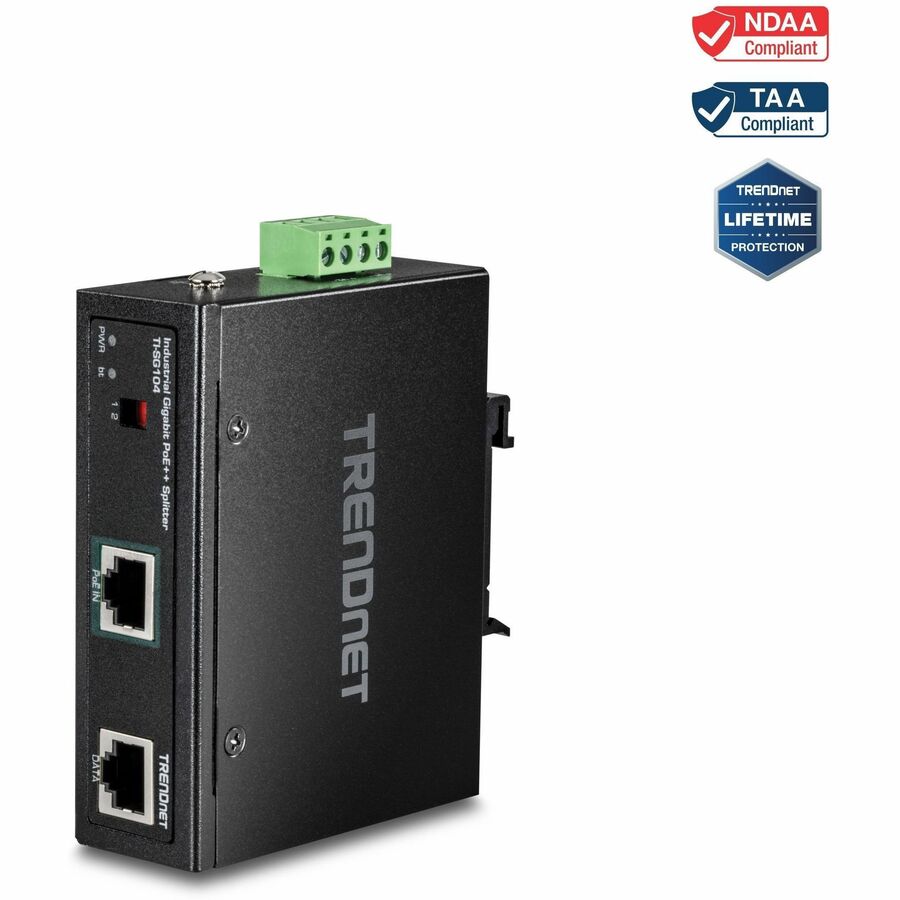

TRENDnet Industrial Gigabit PoE++ Splitter, TI-SG104, Extreme Temperature Range Ready,-40° - 75° C (-40° - 167°F), Power up to 2 Devices with PoE++ up to 100m (328ft.), Black

TRENDnet Industrial Gigabit PoE++ Splitter, TI-SG104, Extreme Temperature Range Ready,-40° - 75° C (-40° - 167°F), Power up to 2 Devices with PoE++ up to 100m (328ft.), Black

TRENDnet's Industrial Gigabit PoE++ Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit PoE++ connection and splitting it into separate power and gigabit data sources. The industrial gigabit PoE++ splitter can power to up to two devices from a single PoE source. A convenient DIP switch on the PoE++ splitter adjusts output power to 12V, 16V, 24V, or 48V to match varying power requirements for non-PoE devices. The PoE++ splitter's dual DC power output provides greater device compatibility.

DEVICE INTERFACE: 1 x Gigabit Port; 1 x Gigabit PoE++ Port; 4-pin Removable Terminal Block (Dual DC Output); Adjustable output power DIP Switch (48V, 24V, 16V, 12V)

POE++ POWERED: No power adapter necessary; the PoE++ splitter takes a PoE++ network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.).

ADJUSTABLE VOLTAGE OUTPUT: Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A) or 48V (1.5A) to match non-PoE device power requirements.

DUAL DC POWER OUTPUT TERMINAL BLOCK: The PoE++ splitter includes a dual DC power output terminal block, powering for up to two devices

EXTREME OPERATING TEMPURATURE: Designed for industrial environments with a wide operating temperature range of -40° - 75° C (-40° - 167° F)

WALL MOUNTABLE: The splitter comes with a wall mount kit that accommodates most installation scenarios

DIN-RAIL MOUNTABLE: The PoE++ splitter comes with a DIN-Rail mount kit that fits a standard TS35 DIN-Rails

POWER: Input: 15.4W/30W/60W/90W PoE power; Max. consumption: 1W (splitter only)

Max. combined DC Output: 48V (1.5A), 24V (2.3A), 16V (2.3A), 12V (2.3A)

NDAA / TAA compliant (U.S. and Canada only)

More from the Manufacturer

• NDAA / TAA compliant (U.S. and Canada only)
• IEEE 802.3bt compliant
• For best performance pair with TRENDnet PoE++ switches or injectors
• Extreme operating temperature range -40 to 75 °C (-40 to 167 °F)
• A single PoE++ source can power up to two devices
• Adjustable voltage output supports 12V, 16V, 24V or 48V devices
• Splits a gigabit 90W PoE++ signal into separate power and data sources
• Power a non-PoE device up to 100m (328 ft.) away from PSE
