TRENDnet

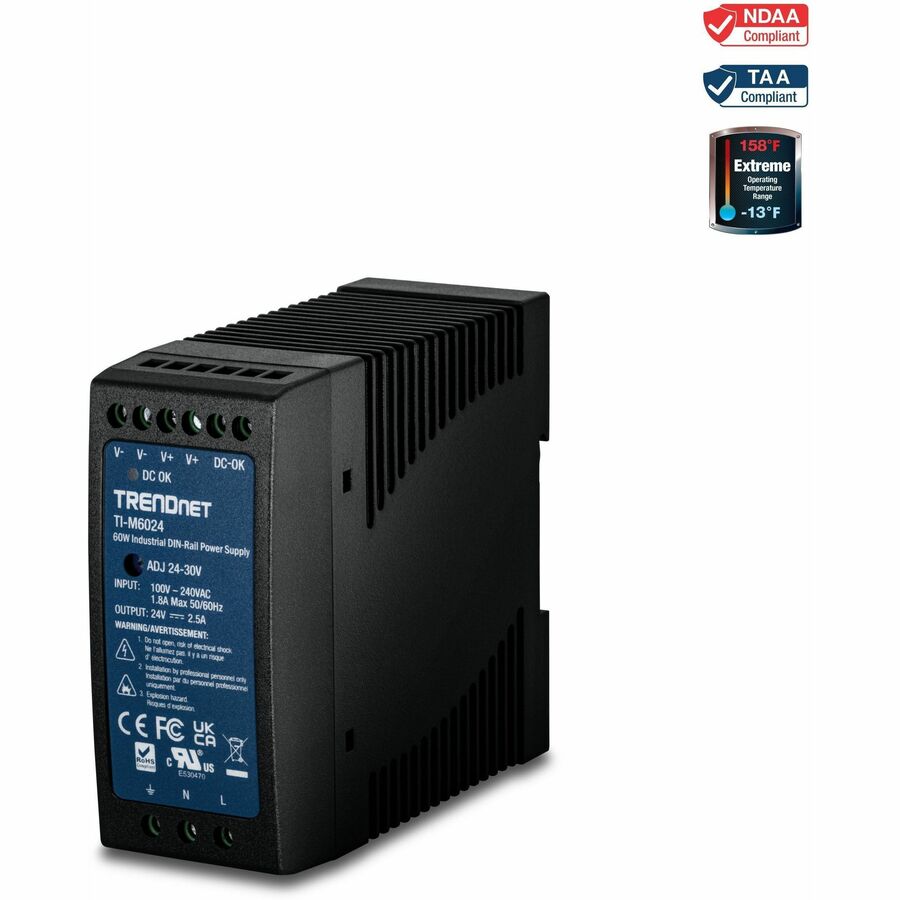

TRENDnet TI-M6024, 60W, 24V DC, 2.5A AC to DC DIN-Rail Power Supply
TRENDnet TI-M6024, 60W, 24V DC, 2.5A AC to DC DIN-Rail Power Supply
SKU:TI-M6024
Regular price
$61.99 USD
Regular price
Sale price
$61.99 USD
Out of stock
Quantity
Couldn't load pickup availability
TRENDnet TI-M6024, 60W, 24V DC, 2.5A AC to DC DIN-Rail Power Supply
DEVICE INTERFACE: Input: 100 - 240V AC, 47 - 63Hz, 1.8A 120 - 370V DC; Output: 60W, 24 - 30V, 0 - 2.5A; DIN-Rail:TS-35/7.5 or 15 60W POWER: The power supply provides up to 60W of power (24V DC, 2.5 A) OUTPUT VOLTAGE: 24 - 30V DC HOUSING: IP30 Rated DIN-Rail Mount OPERATING TEMPERATURE: The IP30 Rated housing provides an extreme -20 to 70 °C (-4 to 158 °F) operating temperature range PEAK LOAD CAPABILITY: 150% peak load capability COOLING METHOD: Natural air convection is used to cool the 60W power supply PROTECTION FUNCTIONS: Short circuit/overload/over voltage/over current protection with a self-recovery protection type. UL 62368 Approved ADDITIONAL FEATURES: 100% full load burn-in test; Built-in DC OK relay contact
TRENDnet's AC to DC Industrial DIN-Rail Power Supply, model TI-M6024, supplies up to 60W (24V DC, 2.5A) of power to industrialequipment, such as switches, injectors, and WiFi access points. This DIN-Rail power supply comes with an integrated DIN-Railmount, and short circuit, over power, and overload current protection.
- Extreme -20 to 70 °C (-4 to 158 °F) operating temperature range
- Built-in DC OK relay contact
- 100% full load burn-in test
- UL 62368 approved
- Short circuit/overload/over voltage protection
- Cooling by natural air convection
- 150% peak load capability
- High efficiency 86% and low power dissipation
- Supported output voltage 24 - 30V DC
- Provides up to 60W of power (24V DC, 2.5A)
- IP30 rated industrial power supply with integrated DIN-Rail mount
