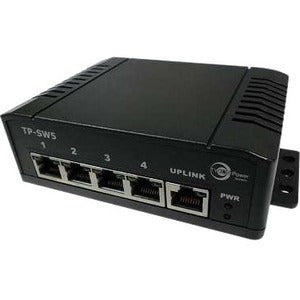

Tycon Power POE 5 Port Switch

Tycon Power POE 5 Port Switch

Tycon Power Systems

TP-SW5G-NC: Universal Voltage 10/100/1000MB PoE Switch. Switch accepts a voltage from 12-56VDC and outputs the same voltage to 4 PoE ports. 1A per port.

The unit supplies PoE power to the remote device on Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.

The switch accepts DC power from any power supply. The PoE output voltage equals the DC voltage of the power supply used from 12V to 56VDC. The switch also includes an unpoowered uplink port. The switch can be powered through this uplink port with 12V to 56VDC so it can be used as a repeater/extender in a remote location.

• Effectively increases available bandwidth on your network
• Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
• Quickly and easily set up a wired network with 5 networking ports
• With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
• Rail mounting is ideal for factory areas, in vehicles and marine applications
• Managed switch provides a reliable foundation for your network
• Gigabit Ethernet port for ultra-fast network speeds
• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
